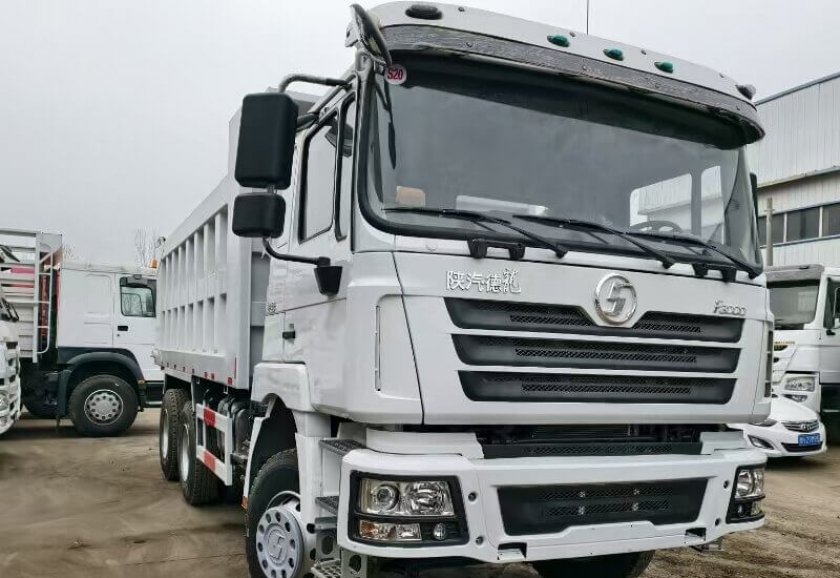

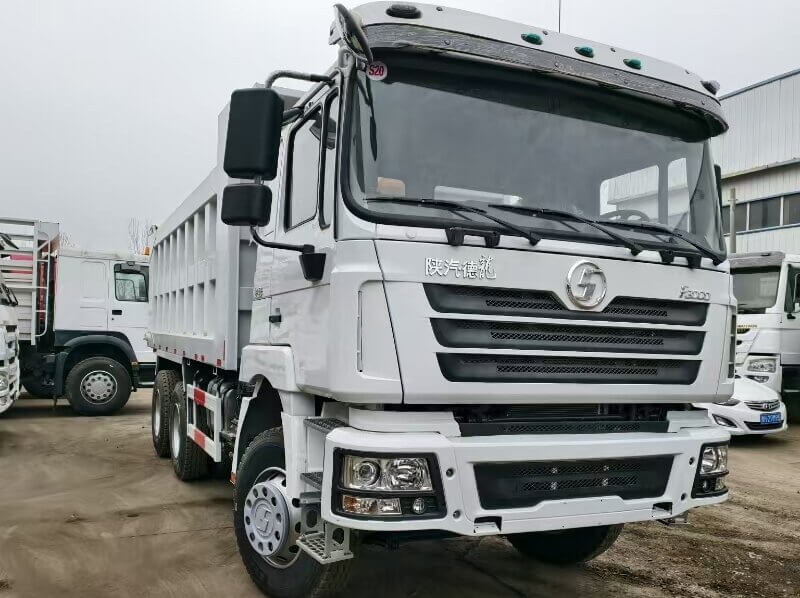

USED SHACMAN F3000 6X4 340HP DUMP TRUCK
SPECIFICATION
Model | SX3255DR384 | ||
Driver position | Left Hand | ||
Driving type | 6*4 | ||
Wheelbase | 3775+1400mm | ||
Max. Speed | 100 km/h | ||
Engine
| Brand | WEICHA | |
Model | WP10.340E3 | ||
Emission Standard | EURO III | ||
Rated output power | 340ps | ||
Displacement
| 9.726L | ||

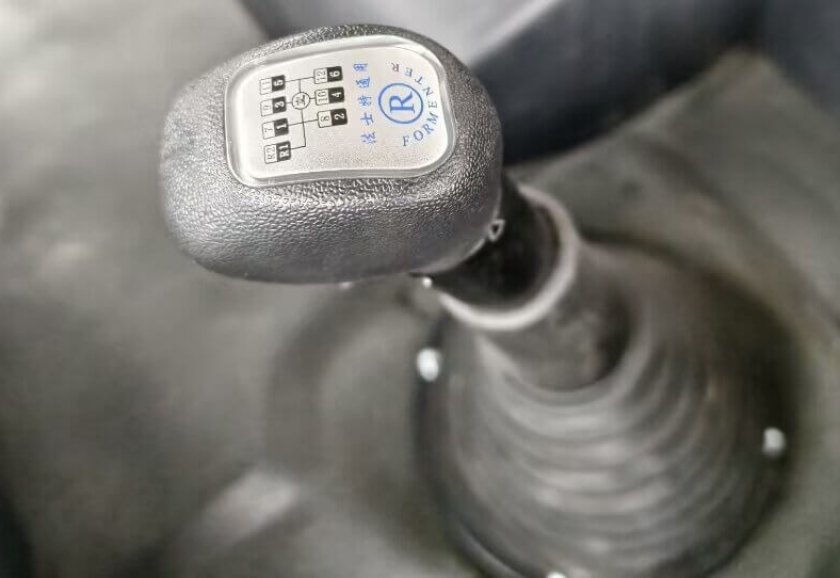

Transmission
| Brand | FAST | |
Model | 10JSD180+QH50 | ||
Front axle | Brand | HANDE | |
Model | MAN 9.5T | ||
Rear axle | Brand | HANDE | |
Model | 16T MAN double reduction driving axle Speed ratio 5.92 | ||
Clutch | ￠430 diaphragm clutch | ||
Steering | ZF technology | ||
Frame | 850x300（8+7) | ||

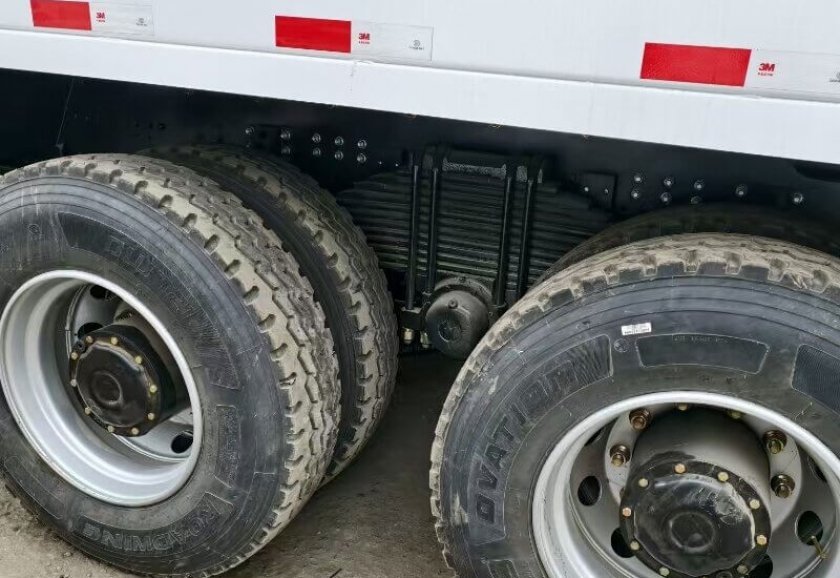

Suspension | Front and rear multi-leaf spring | ||
Fuel tank | 400L Aluminum alloy | ||
Wheels and tires | 12R22.5 | ||
Brakes | Running brake:Dual circuit compressed air brake | ||
Parking brake:Air discharging with spring control | |||
Auxiliary brake:Engine exhaust brake | |||

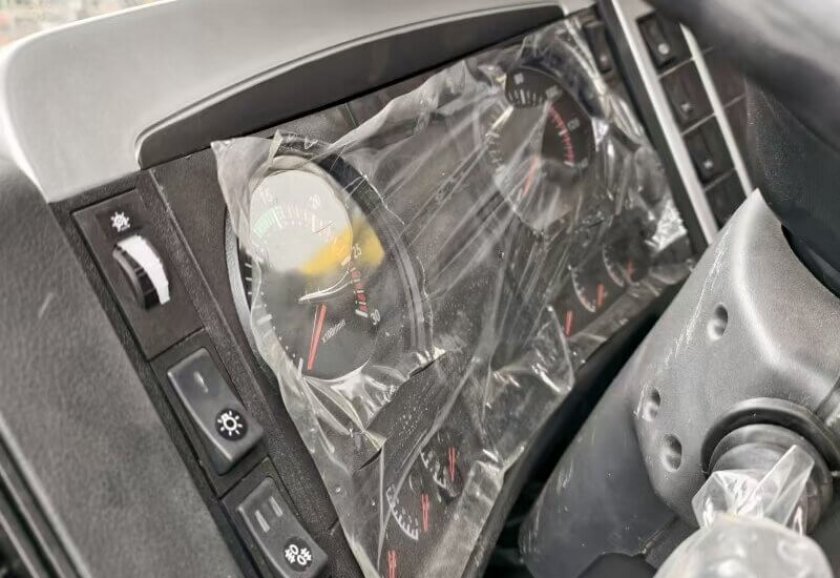

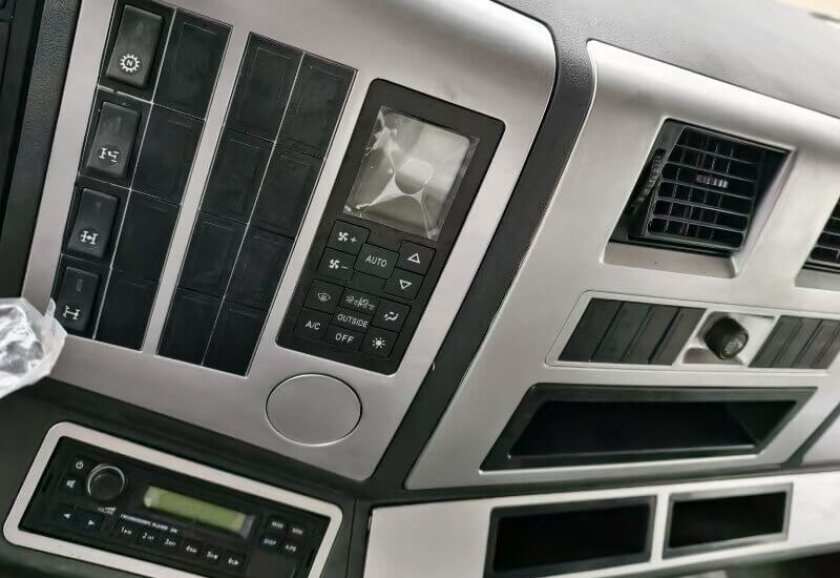

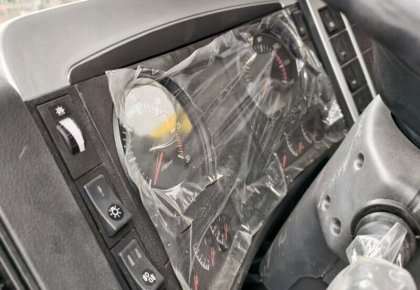

Cabin | F3000 medium and long flat top cab without top guide hood, hydraulic main seat, four-point hydraulic suspension, ordinary rearview mirror, electronic control automatic air conditioning, hand shaker window machine, manual flip, metal bumper with lamp protection net, two-stage boarding pedal, desert air filter, ordinary exhaust, water tank protection grid, taillight protection grid, 165Ah maintenance-free battery, soundproof panel, curtain and sleeper Curtain, SHACMAN logo, all English logo, iron air storage cylinder, rim decoration cover | ||

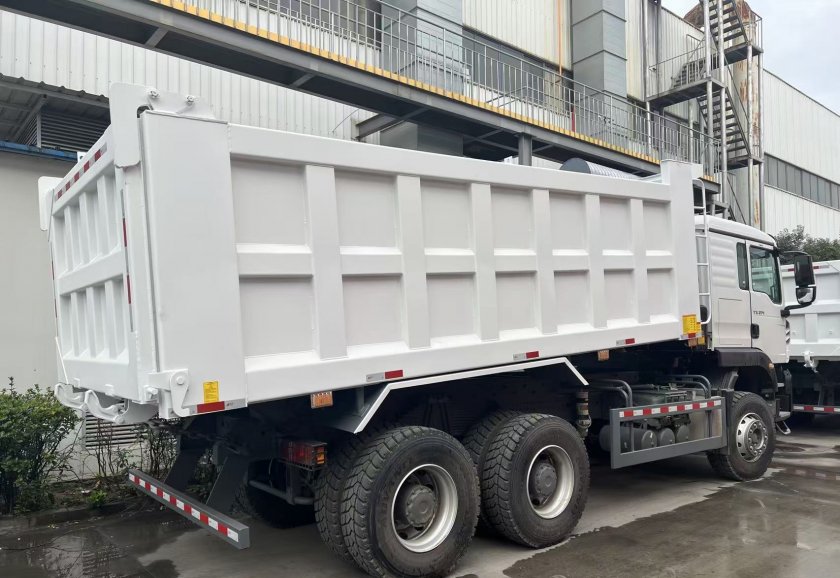

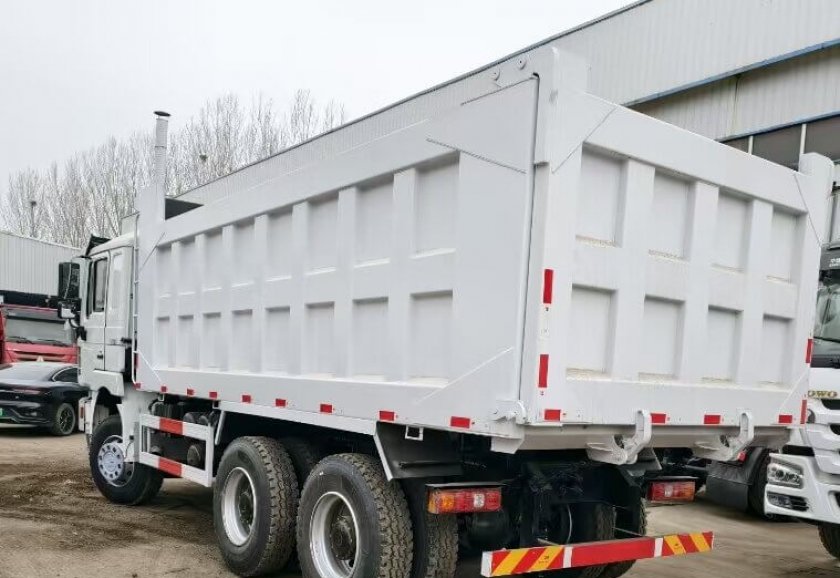

Upbody | 5600*2300*1700 The bottom plate is 8 mm and the side plate is 6mm | ||
Refurbishment standards
1. Engine Refurbishment
* Replacement of engine components (cylinder, piston rings, cylinder barrel, piston pin).
* Engine oil pump repair.
2. Clutch System
* Replacement of clutch discs, clutch pressure plate, clutch master cylinder, and clutch slave cylinder.
3. Air System
* Replacement of the entire air system (including a four-circuit dryer).
4. Electrical System
* Brand new chassis wiring.
5. Steering System
* Replacement of steering tie rod ends.
6. Braking System
* Brand new brake pads.
7. Cooling System
* Replacement of radiator intercooler fins.
8. Replacement Components
* New oil filter, muffler, battery box, fuel tank, and water tank.
* New sleeper berth and seats.
9. Overall Vehicle Condition
* The vehicle remains in its original condition, requiring no major repairs; only refurbishment, no modifications, ensuring normal operation.
* The engine, transmission, and rear axle are in good condition, with no major faults.
10. Cab Refurbishment
*Refurbish the cab and clean it thoroughly.
* Add front and rear light covers, replace seats and sleeper berths.
11. Core Component Maintenance
* Refurbish the engine and clean the oil cylinders.
* Inspect the gearbox and axles and ensure they are in good working order.
12. Tires and Exterior
* Refurbish the steel rims.
* Replace 10 tubeless tires (model 12R22.5).
* Full vehicle painting, frame sandblasting and painting.
13. Other Repairs
* Replace engine oil, three-filter, battery, lights, and mudguards.
* Inspect the air conditioning system to ensure it is functioning properly.
