Cab

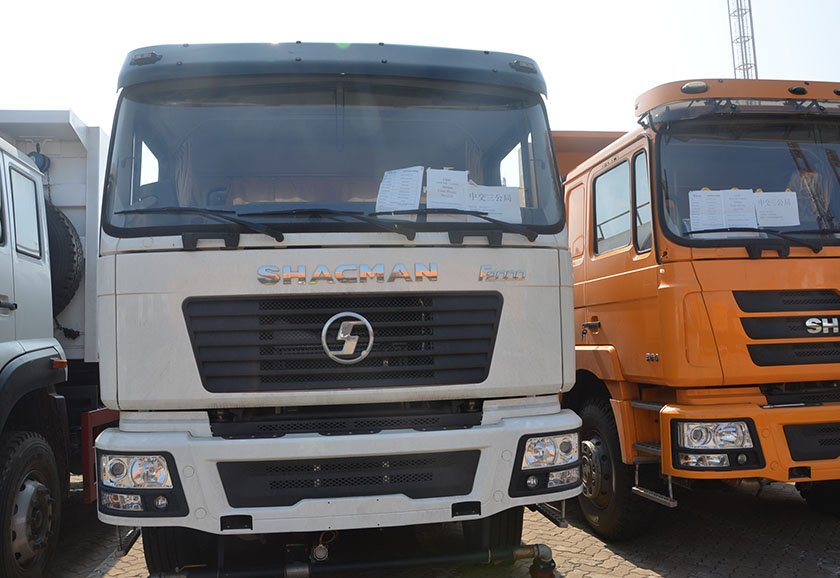

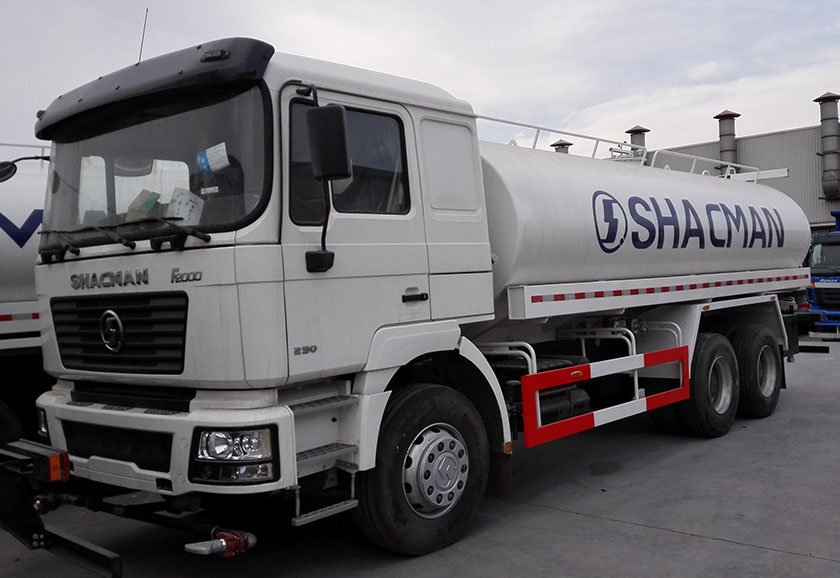

MAN F3000 Cab  Single bed  Air conditioner

Dimension(Lx W xH)(mm)

9550×2500×3530mm

Total mass(kg)

25000kg

Kerb mass(kg)

10900kg

Rated mass(kg)

13970kg

Approach / departure angel

16/17

Front/rear suspension(mm)

1525/2400

Max. gradeability (%)

25

Engine brand

Weichai Engine

Engine model

WP10.290E32,290hp

Rated output power

213kw

Torque(N.m r. p. m)

1160N.m/1200-1600rpm

Rated speed(rpm)

2200rpm

Emission Standard

E-II

Displacement(L)

9.726L

Driving type

4

Axle number

3

Wheel base(mm)

4375+1400mm

Clutch

φ430 diaphragm spring

Gearbox

FAST 9JS119,9 Forward&1 Reverse,Manual

PTO

QH50

Front axle

7.5T MAN  7500kg

Rear axle

13T STR  2×13000kg

Ratio

4.8

Steering

ZF technology   left-hand drive(LHD)

Brake system

WABCO ABS(Four channel)

Type

315/80R22.5,10+1pc

Tank capacity(L)

400L

Max. speed (km/h)

90km/h

Color

Optional

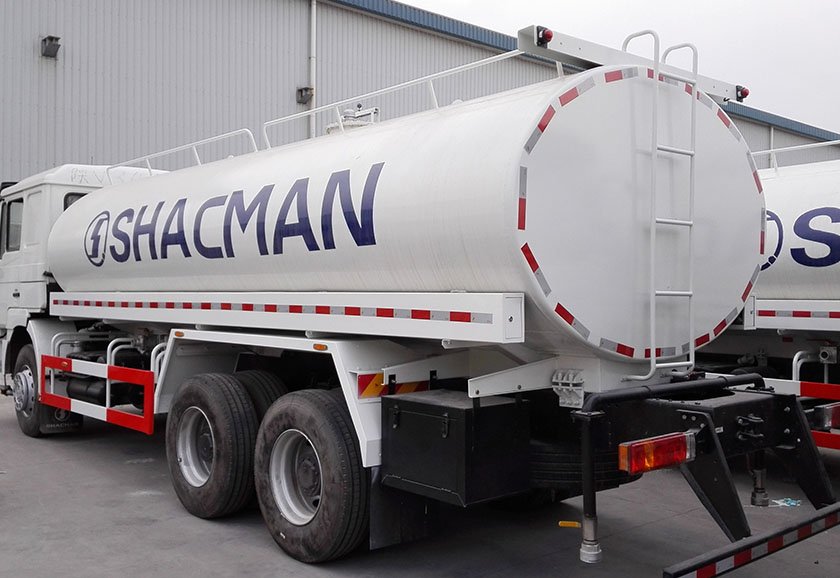

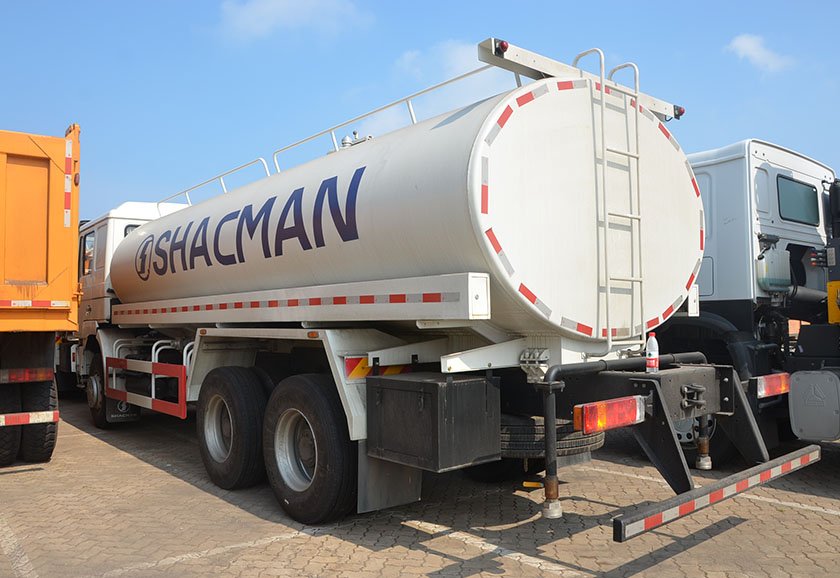

Tank volume

20000L

Water tank configuration

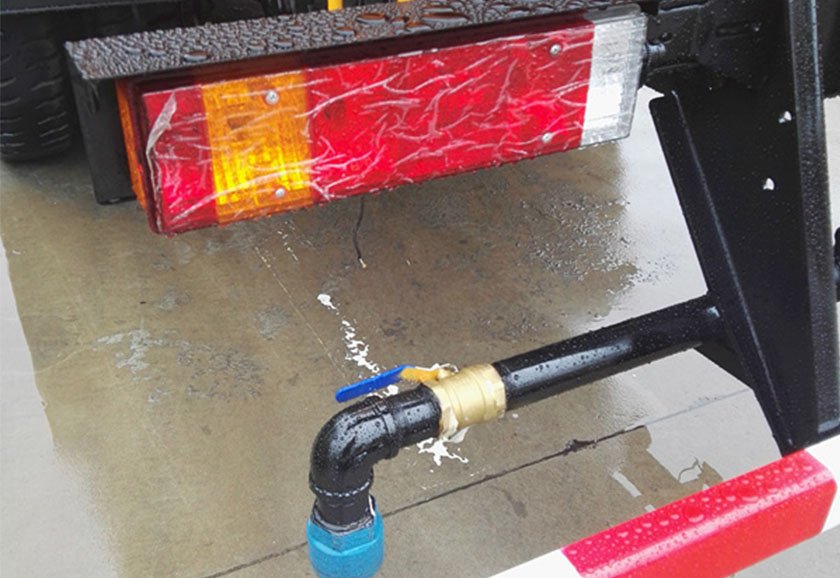

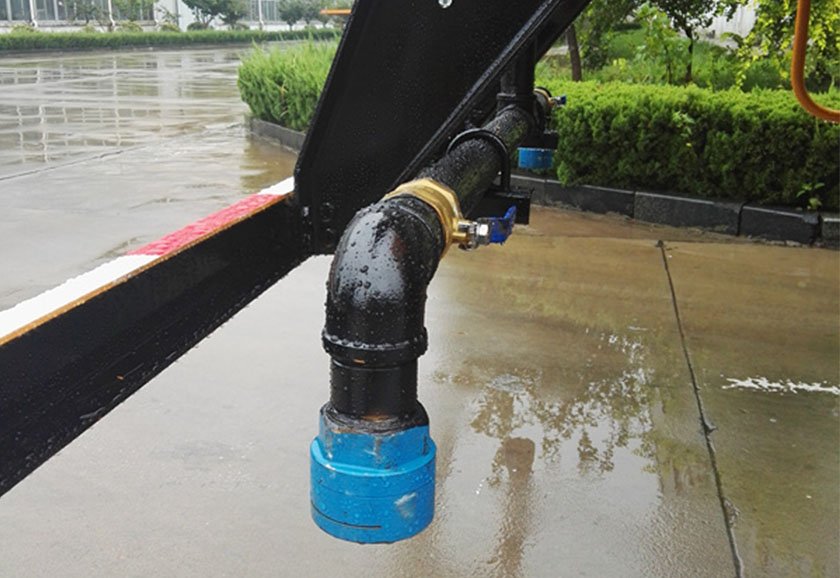

Pump,Front spray,Rear sprinkle,Rear spray,Back work platform…
