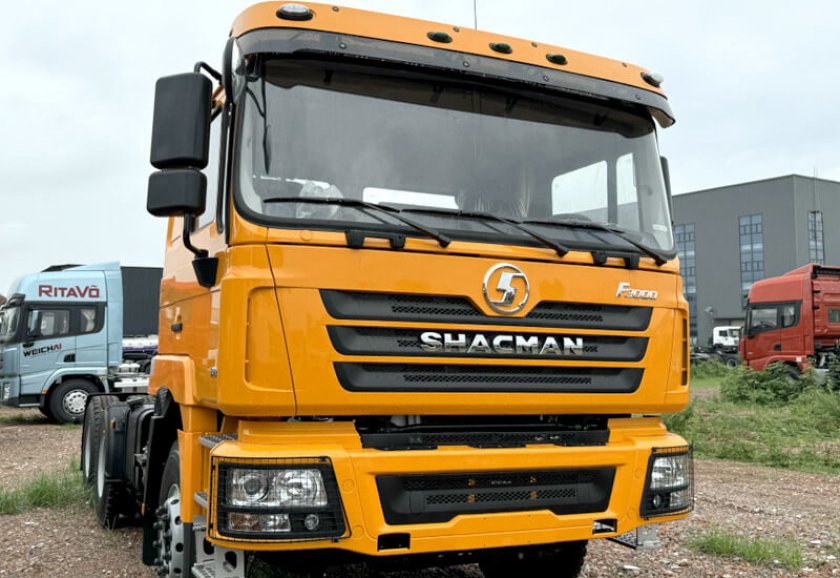

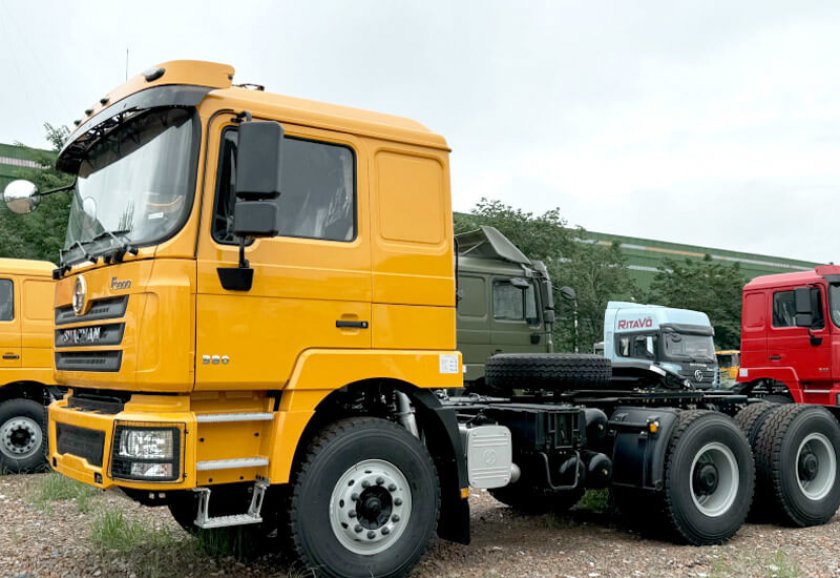

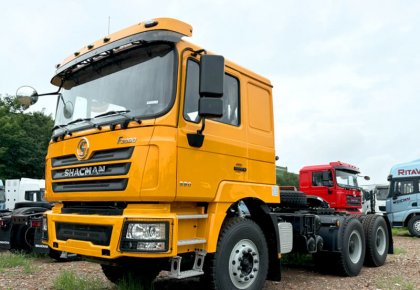

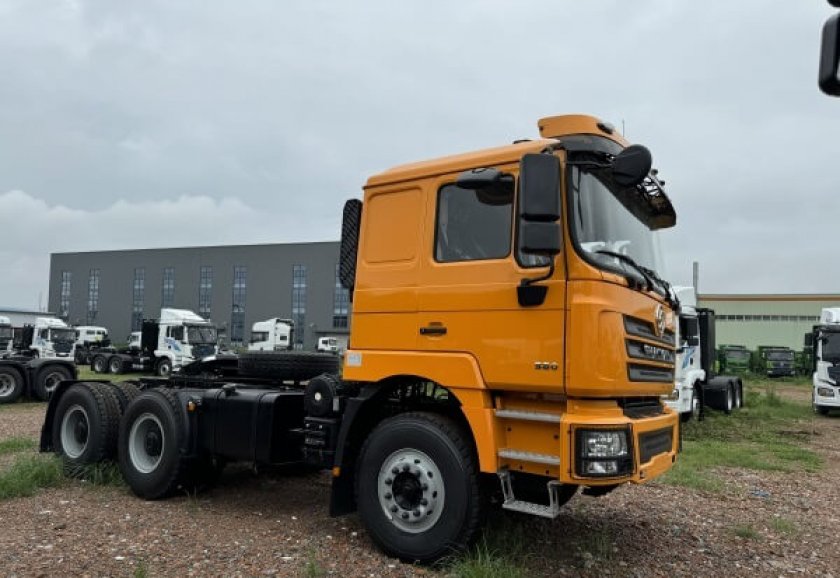

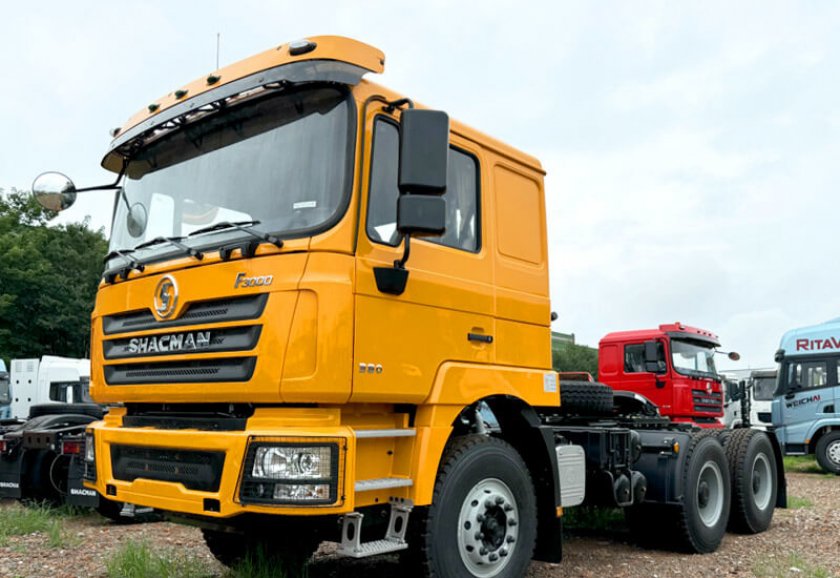

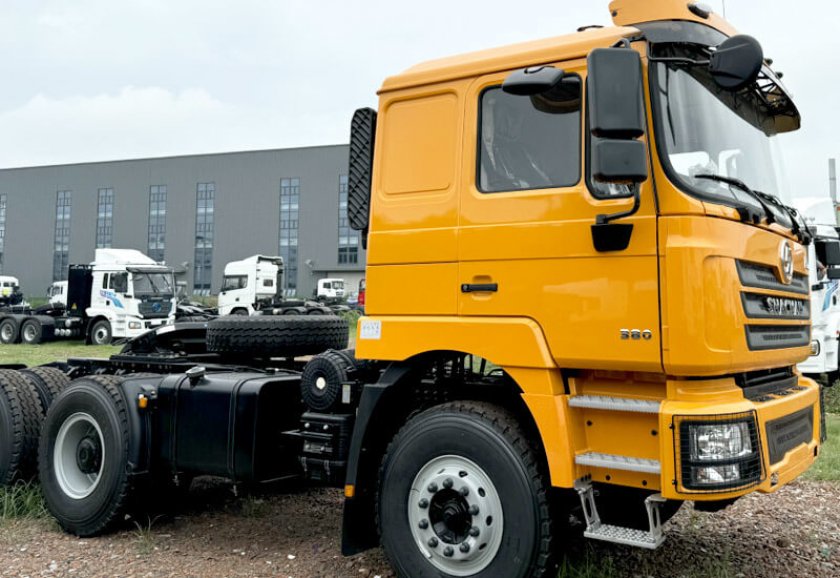

SHACMAN F3000 6X4 430HP TRACTOR TRUCK Overview

Advantage

1. Mining tread tires: puncture-resistant and cut-resistant, suitable for unpaved roads.

2. 16-ton MAN dual-stage reduction axle: high ground clearance and amplified torque, suitable for heavy-duty climbing.

3. 5.92 ultra-high gear ratio: strong starting power, but higher fuel consumption.

4. Enhanced protection: equipped with oil pan/water tank protection grille, split mudguards, etc.

5. Practicality-oriented: lower comfort features (manual windows, no central locking, hydraulic seats, etc.), prioritizing "work" (duty-related).

6. Short-distance heavy-duty transportation on unpaved roads such as mining areas and construction sites.

7. Transportation of heavy-duty materials such as sand, gravel, coal, and mineral powder.


SHACMAN F3000 6x4 430HP Tractor Truck Specifications

Model

SX4255JV324

Drive type

6x4

Cab

F3000Extended flat top, without top fairing, with left and right sound insulation panels

Powertrain and Transmission System

Engine

WP12.430E201

Horsepower

430hp

Emission standard

Euro 2

Gearbox

12JSD200T-B

Clutch

Domestic clutch

Chassis and running system

Front axle

MAN 9.5T

Rear axle

MAN16T Double-stage casting widened bridge

Speed ratio

5.92

Suspension

Front and rear multi-leaf springs (rear suspension with four U-bolts)

Tyre

13R22.5Domestic tubeless tires (mining pattern)

Frame

850x300(8+7)

Steering machine

Domestic steering machine

Functional and security configuration

Saddle

Jost 90 Saddle (Reinforced)

Fuel tank

380L Iron tank

Air conditioner

Single-cooling air conditioner

Air filter

Oil bath air filter

Exhaust system

conventional exhaust system

Storage battery

Maintenance-free batteries

Cab tilting

Manual tilting

Seat

Hydraulic main seat

Window

Manually crank the window

Rearview mirror

Standard rearview mirror

Bumper

Steel plate bumper

Mudguard

Split mudguard (reinforced support)

Lighting system

LED taillights, taillight protective grille, and two hazard warning lights.

Safety Tip

Reversing Buzzer

Anti-theft measures

Fuel system anti-theft, battery box anti-theft.

Protective barriers

Water tank protective barriers, oil pan protective barriers


Model

SX4255JV324

Drive type

6x4

Cab

F3000 Extended flat top, without top fairing, with left and right sound insulation panels

Powertrain and Transmission System

Engine

WP12.430E201

Horsepower

430hp

Emission standard

Euro 2

Gearbox

12JSD200T-B

Clutch

Domestic clutch

Chassis and running system

Front axle

MAN 9.5T

Rear axle

MAN16T Double-stage casting widened bridge

Speed ratio

5.92

Suspension

Front and rear multi-leaf springs (rear suspension with four U-bolts)

Tyre

13R22.5Domestic tubeless tires (mining pattern)

Frame

850x300(8+7)

Steering machine

Domestic steering machine

Functional and security configuration

Saddle

Jost 90 Saddle (Reinforced)

Fuel tank

380L Iron tank

Air conditioner

Single-cooling air conditioner

Air filter

Oil bath air filter

Exhaust system

conventional exhaust system

Storage battery

Maintenance-free batteries

Cab tilting

Manual tilting

Seat

Hydraulic main seat

Window

Manually crank the window

Rearview mirror

Standard rearview mirror

Bumper

Steel plate bumper

Mudguard

Split mudguard (reinforced support)

Lighting system

LED taillights, taillight protective grille, and two hazard warning lights.

Safety Tip

Reversing Buzzer

Anti-theft measures

Fuel system anti-theft, battery box anti-theft.

Protective barriers

Water tank protective barriers, oil pan protective barriers


Your SHACMAN F3000 Tractor Truck Supplier in China

We supply SHACMAN heavy-duty trucks for international buyers, including tractor trucks, dump trucks and cargo trucks. We assist customers with vehicle configuration confirmation, technical specification documents, quotation preparation and export-related communication.


For SHACMAN F3000 6x4 430HP tractor trucks, please contact our team with your destination country, required quantity and preferred configuration. We will check the available specifications and provide a quotation based on your requirements.


Frequently Asked Questions About SHACMAN F3000 6x4 430HP Tractor Truck

Q1: What is the horsepower of the SHACMAN F3000 tractor truck?

This model is presented as a 430HP SHACMAN F3000 tractor truck. The actual engine model and rated power should be confirmed against the vehicle specification sheet.


Q2: Is the SHACMAN F3000 430HP a 6x4 tractor truck?

Yes. The product described on this page is a 6x4 tractor truck with two driven rear axles.


Q3: Which engine is used in the SHACMAN F3000 430HP tractor truck?

Some configurations use a Weichai WP12 430HP diesel engine, including WP12.430E201 or WP12.430N variants. Please confirm the exact engine model before ordering.


Q4: Which gearbox is available for the F3000 430HP tractor truck?

A FAST 12JSD200T-B manual gearbox is listed in some configurations. Other transmission options may be available depending on the selected vehicle specification.


Q5: What is the emission standard of the SHACMAN F3000 430HP?

The emission standard depends on the engine and vehicle configuration. Euro II and Euro III versions are listed in different market specifications. Please confirm the applicable standard for your destination country.


Q6: What is the fuel tank capacity?

A 400-liter fuel tank is listed in some reference configurations. Other tank capacities may be available. Please confirm the actual fuel tank specification before ordering.


Q7: What axle configuration does the SHACMAN F3000 430HP use?

The truck has a 6x4 drive configuration. Front and rear axle capacities can vary by version, so the exact axle specification should be confirmed in the technical data sheet.


Q8: Is the SHACMAN F3000 430HP available in right-hand drive?

Right-hand drive availability depends on the selected vehicle configuration and production availability. Please contact us to confirm whether an RHD version is available for your market.


Q9: Can the SHACMAN F3000 430HP be used with a container trailer?

It can be configured for compatible container trailer operations. The fifth-wheel specification, trailer weight, vehicle ratings and local regulations should be checked before use.


Q10: How can I get a price quotation for the SHACMAN F3000 430HP tractor truck?

Send us your destination country, required quantity, steering position and preferred configuration. Our sales team can check the available specifications and prepare a quotation.
