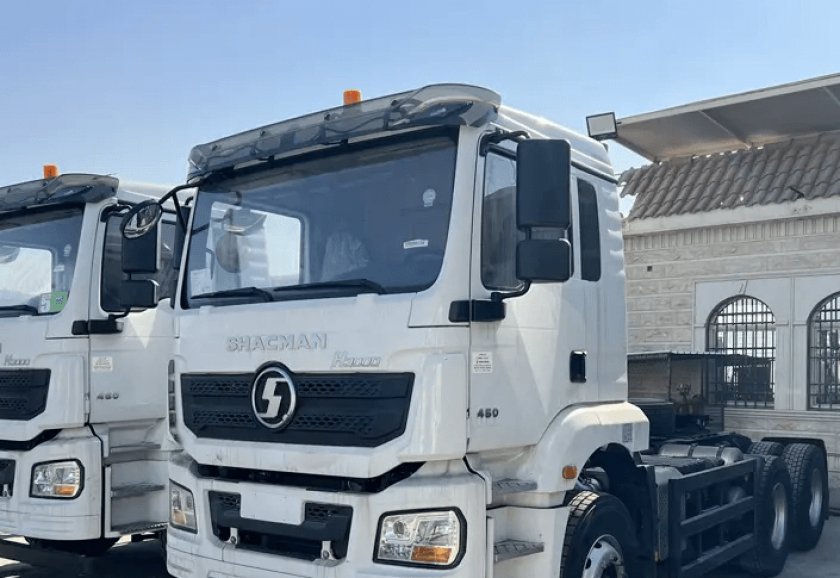

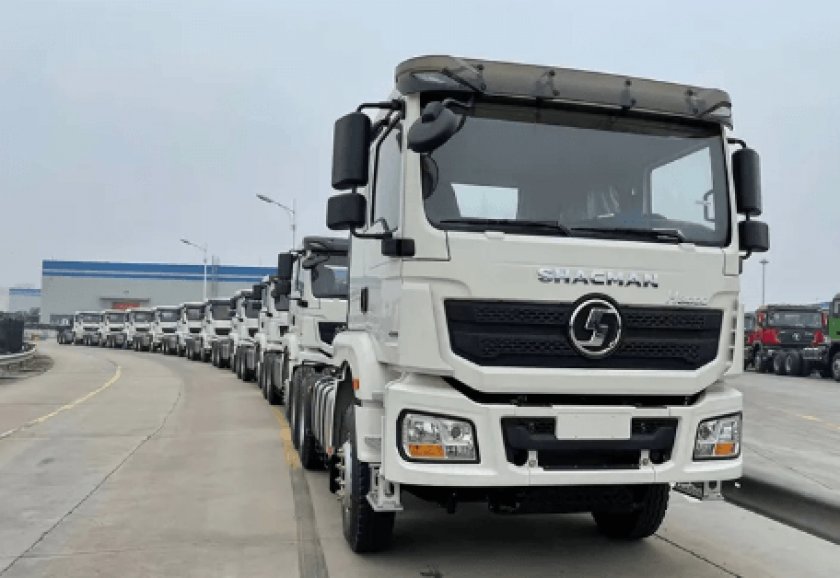

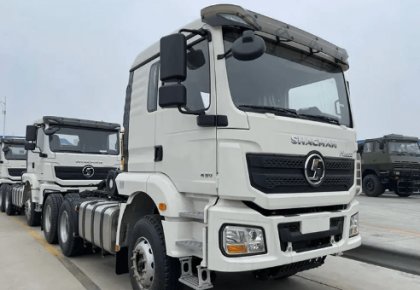

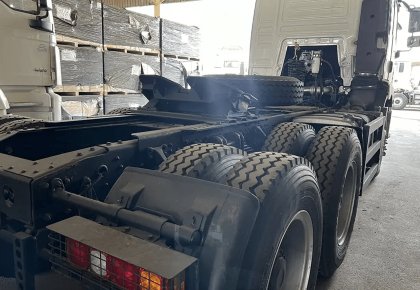

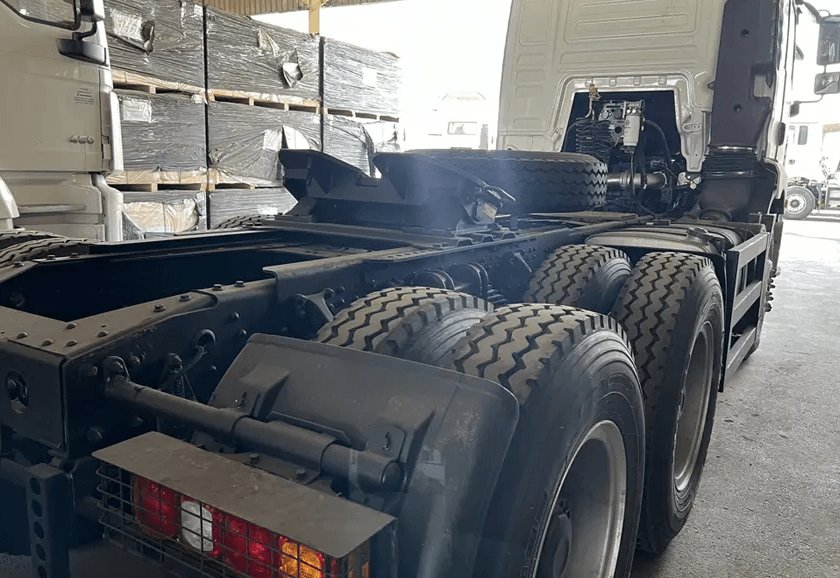

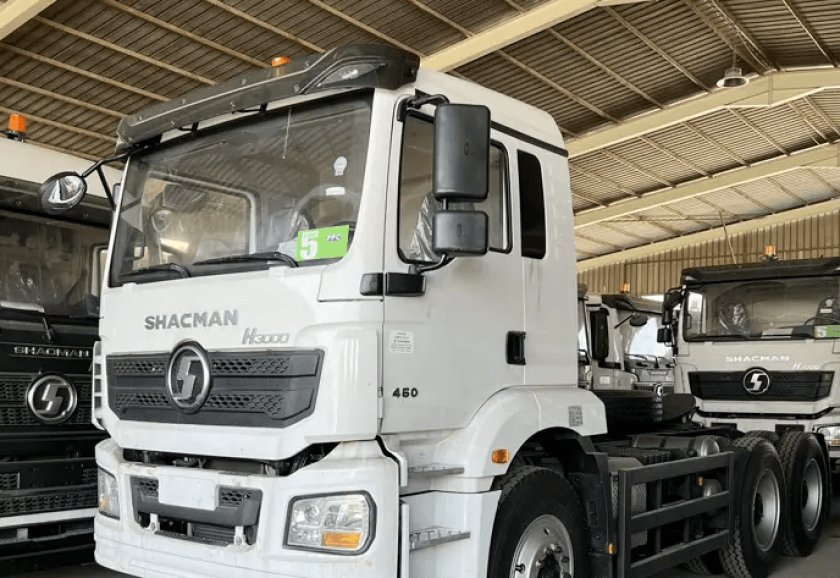

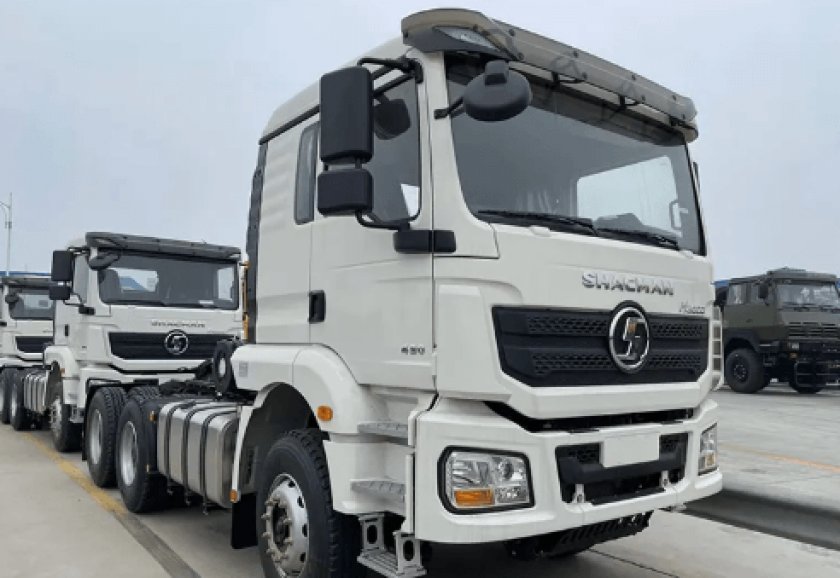

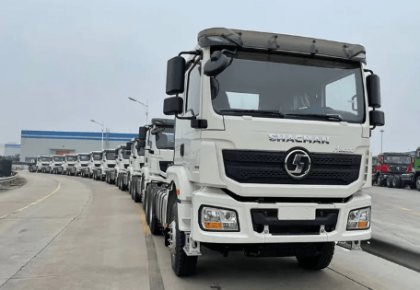

SHACMAN H3000 6X4 385HP TRACTOR TRUCK
| Model | SX4255HT324C | |
| Max. running speed (km/h) | 105 | |
| Drive System | 6×4 | |
| Overall Dimensions （L*W*H）(mm) | 6785×2490×3560 | |
| Approach / departure angle (°) | 20 / 60 | |
| Curb weight (kg) | 8800 | |
| Total mass (kg) | 25000 | |
| Wheel base (mm) | 3175+1400 | |
| Overhang (mm) (front/rear) | 1485/725 | |
| Track width (mm) (front/rear) | 2011/ 1800 | |
| Engine | ISME385 30 ( Cummins Engine, Euro 3) | |
| Horsepower | 385 hp | |
| Gearbox | 12JSD200T-B (FAST GEAR), manual, 12F & 2R | |
| Clutch | Ф 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | H3000 cabin with A/C & single sleeper | |
| Axle | Front axle | MAN 7.5T |
| Rear axle | 13 Ton MAN driving axle , final ratio 3.866 | |
| Fifth wheel | 90# | |
| Oil tank(L) | 400L (ALLOY) | |
| Tyre（radial tyre） | 12.00R20(10+1 spare tyre) | |
| Optional | Weichai engine | |
| Hydraulic retarder | ||
| 1000L fuel tank | ||
| JACOB Engine Brake | ||
Key Selling Points:
1. Powerful Performance: Equipped with a Cummins 385hp large-displacement engine and a Fast 10-speed transmission, providing strong acceleration and powerful hill climbing under heavy loads.
2. Superior Safety: Standard hydraulic retarder completely solves the problem of brake overheating on long downhill slopes, making mountain driving safer.
3. Comfortable and Bump-Free: Four-point floating cab and air-suspension seat significantly filter vibrations, reducing fatigue during long-distance driving.
4. Robust and Durable: MAN technology axles and multi-leaf spring suspension are designed for harsh road conditions and heavy loads, ensuring high uptime.
Contact us for pricing and configuration options！
