SHACMAN F3000 340hp 6x4 Dump Truck for Sale

Key Features:

✅Reliable & Fuel-Efficient Engine--Powered by the Weichai diesel engine, delivers high torque with better fuel efficiency.

✅6x4 rigid drive--Superior load distribution for heavy duty loading, Excellent traction on poor roads.

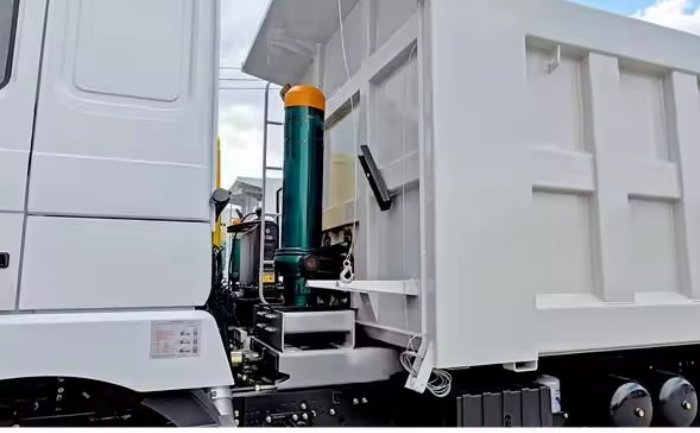

✅Robust Hydraulic Dumping System--Fast and stable lifting cycle, hydraulic pump driven by power take-off (PTO) from the transmission, reliable and easy to service.

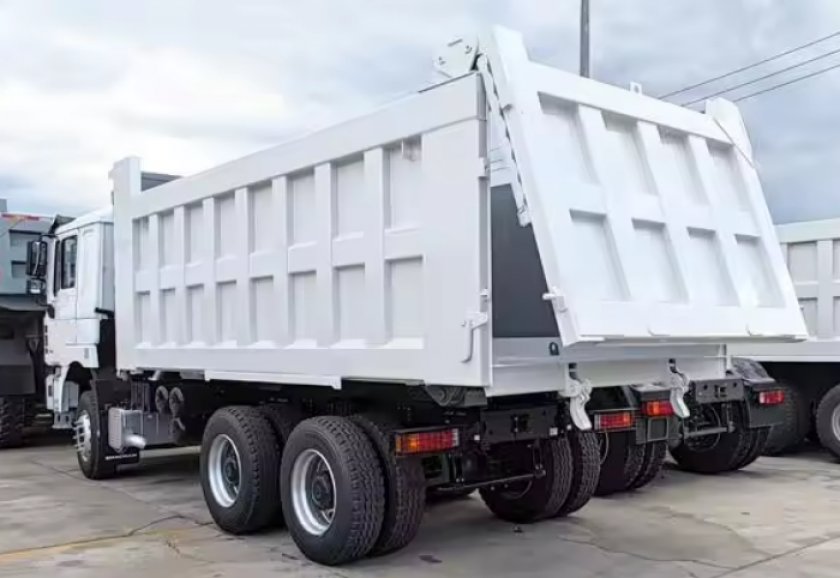

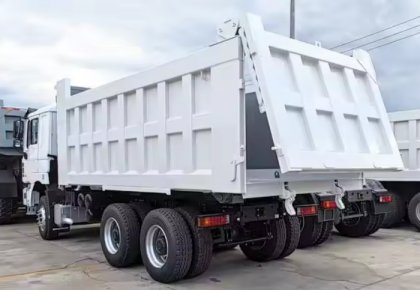

✅Durable Dump Body--Reinforced floor and side panels with extra crossmembers to handle heavy loads like rocks, sand, gravel, and demolition debris.

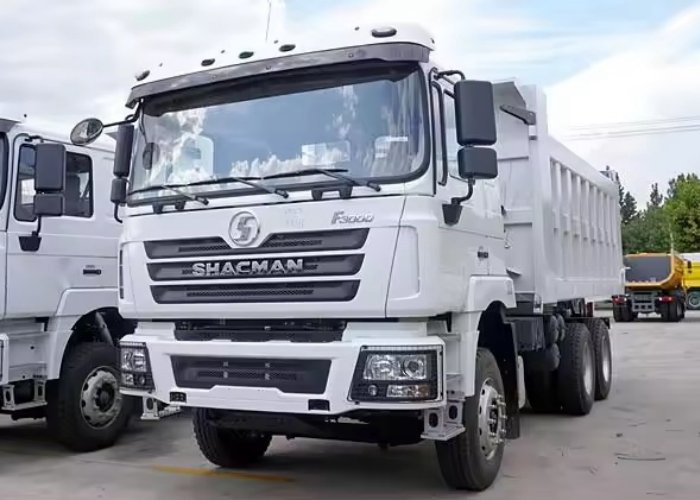

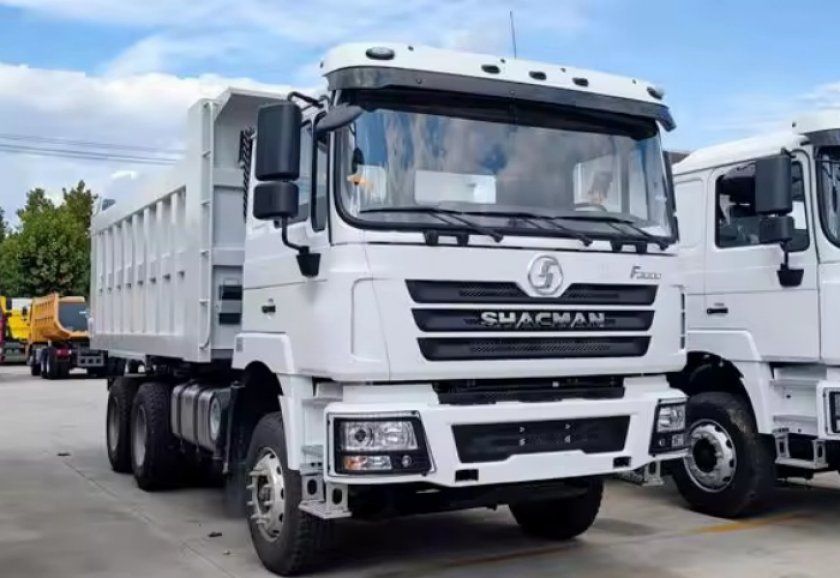

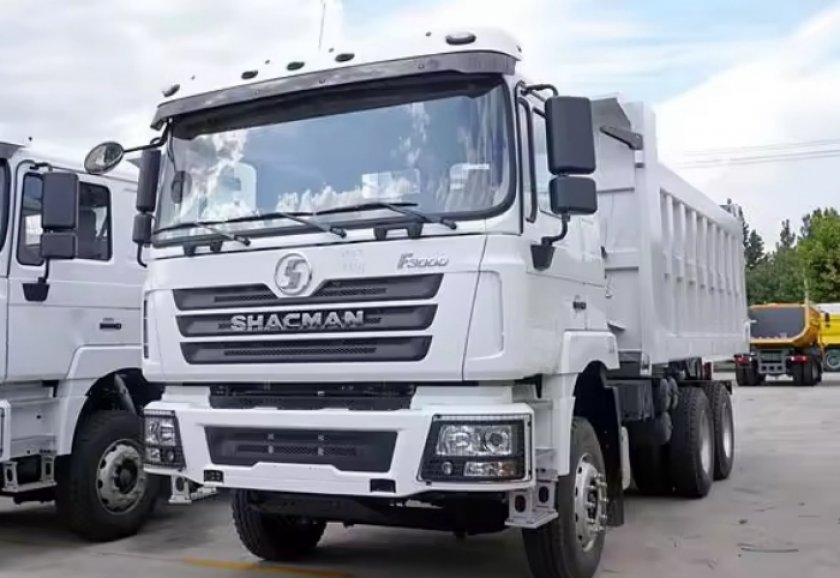

SHACMAN F3000 340hp 6x4 Dump Truck for Sale

SHACMAN F3000 340hp 6x4 Dump Truck for Sale

SHACMAN F3000 340hp 6x4 Dump Truck for Sale


SHACMAN F3000 6×4 340HP Dump Truck Specifications:

Basic InformationModelSX3255DR384
SeriesF3000 strength version
Drive type6x4
Driving modeLeft Hand Driving
Horsepower340hp
DimensionMax. length(mm)8329
Max. width(mm)2490
Max. height(mm)3450
Frame(mm)850x300(8+7)
Wheelbase(mm)3775+1400
Rear hang(mm)850
Upper bodyDump body size (mm)5600X2300X1800
Bucket capacity (cubic meters)23.184cbm
Thickness of body steel (mm)Floor 8 mm; side 6 mm
EngineBrandWEICHAI
ModelWP10.340E22
Emission standardEuro Ⅱ
AxlesBrandMAN
Front axle(kg)9500
Rear axle(kg)16000 (double reduction)
Ratio5.92
TransmissionRTD11509C-Iron-QH50
SuspensionFront and rear multi leaf spring

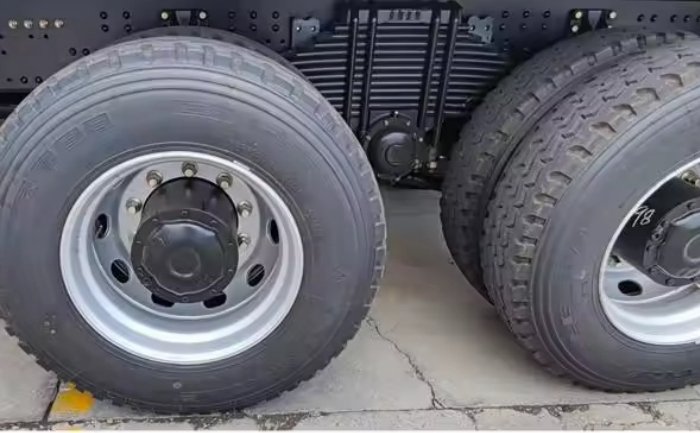

Tyres12R22.5 (10+1)pcs
Tank capacity380L
Tank MterialIron

The SHACMAN F3000 is a high-performance 6x4 dump truck equipped with a powerful 340HP engine, designed specifically for demanding mining and construction operations in Africa.


Applications of SHACMAN F3000 340HP Dump Truck:

• Mining: Efficient transport of ore, coal, and aggregates

• Large-Scale Construction: Road building, dam projects, and urban development

• Quarry Operations: Heavy-duty stone and gravel hauling


The SHACMAN F3000 6×4 340HP dump truck can be configured for different bulk material transportation tasks.

Construction Projects

Transporting sand, gravel, soil and other construction materials at building and infrastructure sites.

Earthmoving Operations

Moving excavated soil and other bulk materials during land development and road construction.

Quarry Operations

Transporting aggregates, crushed stone and other quarry materials, subject to payload and road conditions.

Mining Support

Supporting selected mining-site transportation tasks when the vehicle configuration, payload rating and operating conditions are suitable.

The correct truck configuration should be selected according to the material density, loading volume, road surface, gradients and local vehicle regulations.


Frequently Asked Questions About SHACMAN F3000 6×4 340HP Dump Truck

1. What is the model number of the SHACMAN F3000 340HP dump truck?

The model number listed for this configuration is SX3255DR384. It belongs to the SHACMAN F3000 series and uses a 6×4 drive configuration.


2. What engine does the SHACMAN F3000 340HP dump truck use?

The listed configuration uses a Weichai WP10.340E22 diesel engine with a rated power of 340 HP.


3. What is the emission standard of this truck?

The listed WP10.340E22 configuration is Euro II. Buyers should confirm whether this emission standard meets the import and registration requirements of their destination country.


4. What is the dump body capacity?

The listed dump body measures 5,600×2,300×1,800 mm, with a geometric volume of approximately 23.184 m³.


5. What is the thickness of the dump body?

The listed configuration has an 8 mm floor plate and 6 mm side plates. The material grade and final plate thickness should be confirmed in the order specification.


6. What transmission does the F3000 340HP dump truck use?

The listed configuration uses an RTD11509C iron-shell manual transmission with QH50 PTO.


7. What are the axle specifications?

The listed configuration includes a MAN 9.5-ton front axle and a MAN 16-ton double-reduction rear axle with a 5.92 ratio.


8. What tire size does this truck use?

The current product specification lists 12R22.5 tires, with a quantity of 10+1. Please confirm the tire brand and tread pattern for the actual vehicle.


9. What is the fuel tank capacity?

The listed configuration has a 380-liter iron fuel tank.


10. What is the payload capacity of the SHACMAN F3000 340HP dump truck?

The rated payload is not specified in the current product information. It should be confirmed from the official vehicle documentation and final build sheet. Dump body volume is not the same as payload capacity.


11. Is this truck suitable for mining operations?

It may be suitable for selected mining and quarry transportation tasks, depending on its rated payload, axle configuration, tires, road conditions and operating intensity. Buyers should confirm the intended working conditions before ordering.


12. Can the dump body dimensions be customized?

Dump body dimensions and structural details may be configurable depending on the available chassis and manufacturer confirmation. Please provide your required body dimensions and material type.


13. Can I order a left-hand-drive SHACMAN F3000 dump truck?

The listed vehicle is left-hand drive. If you require a different steering configuration, please contact our sales team to check availability for your market.


14. How can I get a quotation for this SHACMAN F3000 dump truck?

Please send your destination country, required quantity, preferred configuration and destination port. Our sales team can check the available vehicle details and prepare a quotation.
