SHACMAN F3000 12-Wheel 8×4 Dump Truck Overview:

The SHACMAN F3000 12-wheel dump truck is a heavy-duty commercial vehicle developed for demanding transportation applications in mining, construction and infrastructure projects.

Its 8×4 drive configuration features four axles and is designed to provide a suitable chassis platform for heavy-duty bulk material transportation.


Depending on the selected configuration, the truck can be equipped with a Weichai or Cummins diesel engine, a FAST manual transmission and MAN-technology heavy-duty axles.


The dump body can be configured with different dimensions, cargo volumes and steel thicknesses according to the material being transported and the customer's operating requirements.


With its spacious F3000 cab, heavy-duty chassis and front-lifting hydraulic system options, the SHACMAN F3000 is a practical truck platform for international construction and mining transportation markets.


Customers can contact our sales team to confirm engine power, dump body capacity, steering position and the complete vehicle specifications before ordering.


Key Product Information:

  • Brand: SHACMAN

  • Series: F3000

  • Vehicle Type: Heavy Duty Dump Truck

  • Drive Configuration: 8×4

  • Wheel Configuration: 12 Wheels

  • Engine: Weichai / Cummins, depending on configuration

  • Transmission: FAST Manual Transmission, subject to configuration

  • Axles: Heavy-Duty MAN-Technology Axle Configuration

  • Steering: LHD / RHD Options, subject to availability

  • Applications: Mining, Quarry and Construction Transportation

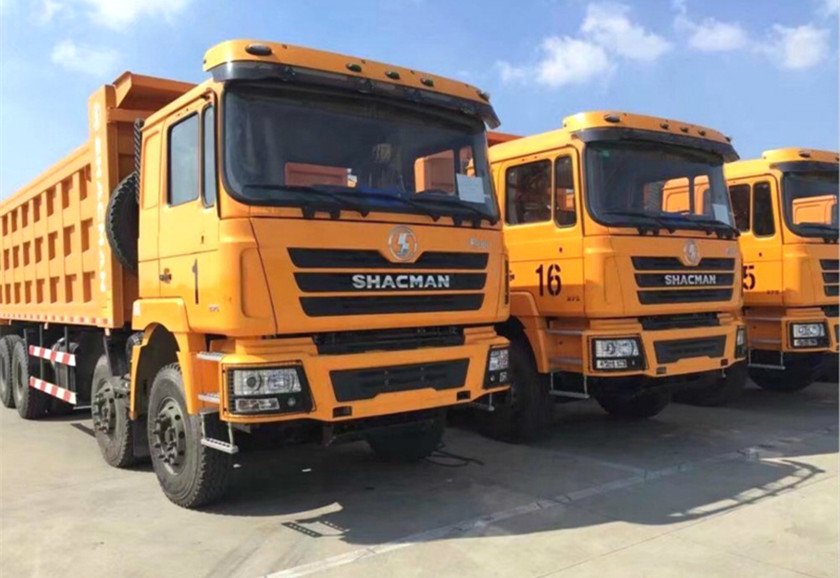

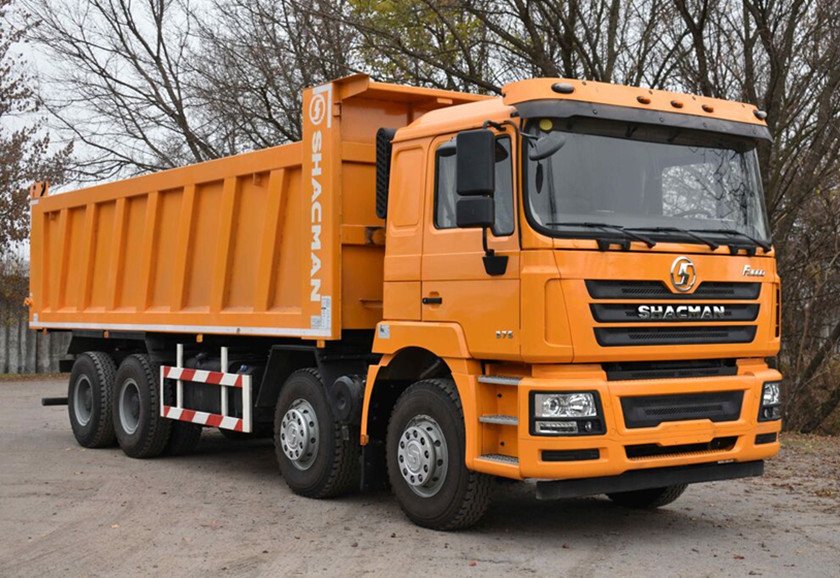

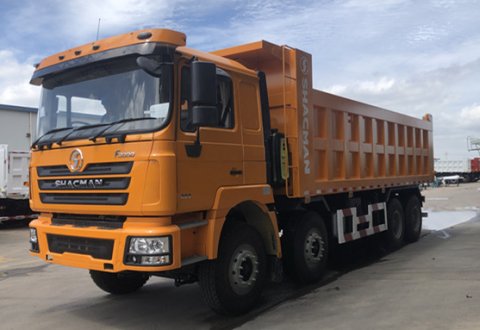

Shacman F3000 8x4 400hp 30m3 Dump Truck

Shacman F3000 8x4 400hp 30m3 Dump Truck

Shacman F3000 8x4 400hp 30m3 Dump Truck


SHACMAN F3000 12-Wheel 8×4 Technical Specifications:

ModelSX3315DU366 Heavy Duty Type
Traction type8X4
Driving typeRHD/LHD
Driver's cab

1 sleeper, hydraulic main seat, four-point hydraulic suspension cab, ordinary rear-view mirror, air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, two-stage pedal, water tank protection grid, taillight protection grid , 165Ah maintenance-free battery, all English logo

Dimension Wheel base(mm): 1800+3575+1400
Overall size(mm): 10250x2490x3450mm
EngineBrand: Weichai
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling
Engine model: WP12.400E201  Euro II
Maximum output: 400HP
Rated speed: 1900rpm
Max torque: 1920N.m/1000-1400rpm
Displacement: 11.596L
Clutch
430mm
Transmission

10JSD180+QH50

Suspension

Front and rear multi-leaf springs, four main films + four riding bolts

Front axle

MAN 9.5T

Rear axle

MAN 16T double reduction driving axle, inter-wheel differential and differential lock)

Ratio: 4.769 12.00R20 Radial tyre (10+1 pcs)

Tyre12.00R20 Radial tyre (10+1 pcs)
ElectricsOperating voltage: 24V, negative grounded
WeightCurb weight: 14600kg
GVW≤70T
Maximum driving speed: 80km/h
Cargo Box

Box inner size

7400x2300x1800mm, 30CBM

Thickness

Floor plate 12mm and side 8mm

Lifting system

Front lifting system

Fuel tank

800L



Applications of SHACMAN F3000 12-Wheel Dump Truck:

√ Construction sites:Transport construction materials and clear construction waste

√ Mining operations:Carry ores and waste rocks

√ Road engineering:Transport materials for road construction and maintenance

√ Agricultural field:Move agricultural products, fertilizers and soil

√ Municipal engineering:Transport earthwork and urban garbage
