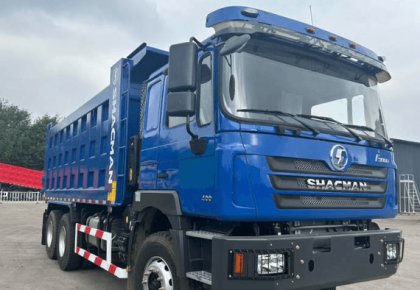

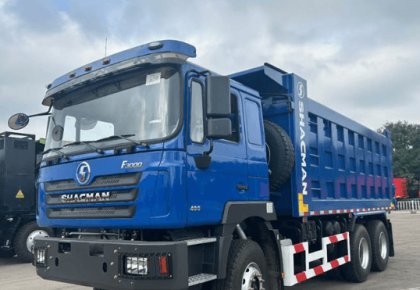

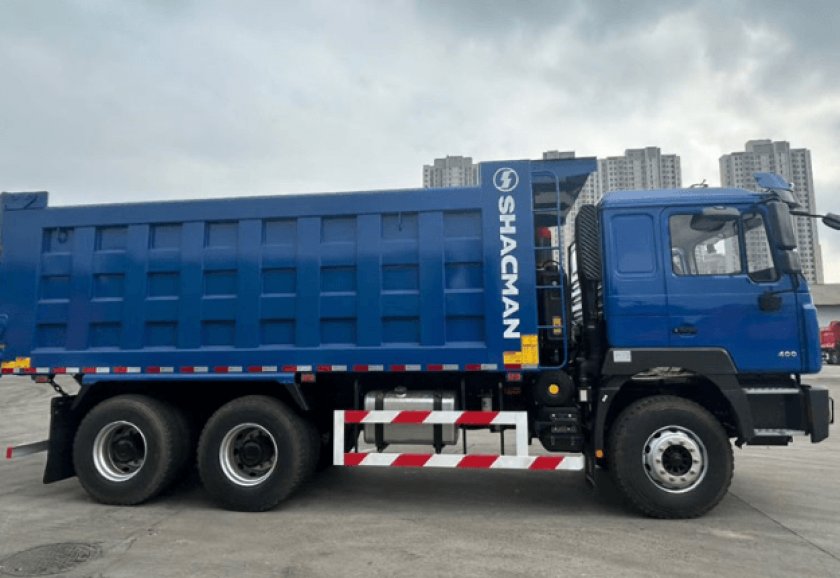

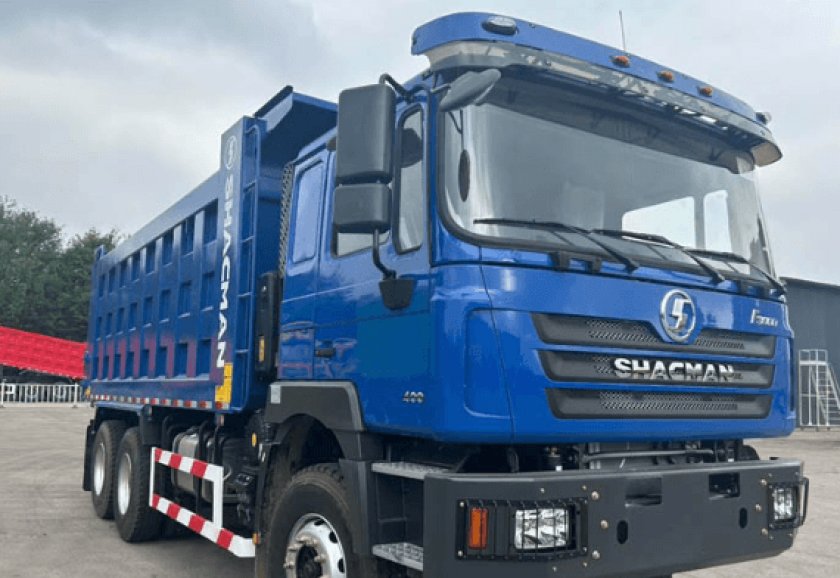

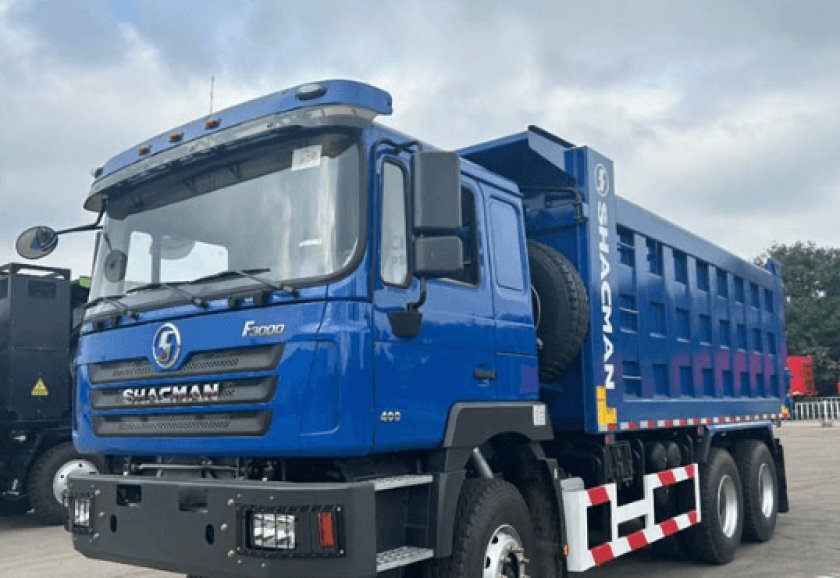

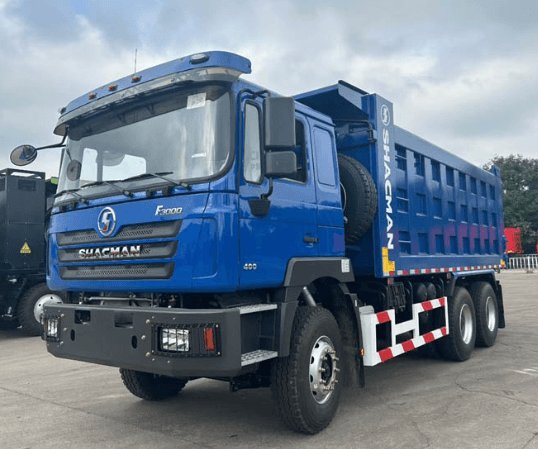

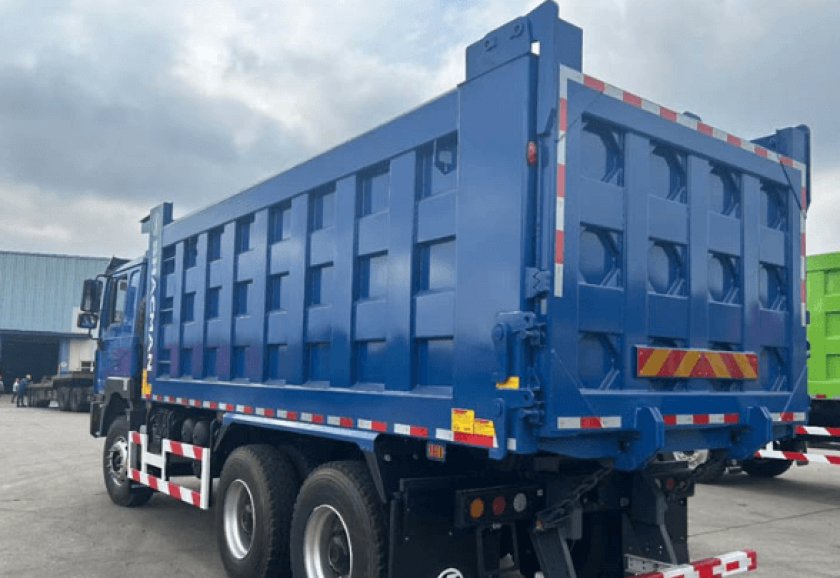

SHACMAN F3000 6X4 400HP DUMP TRUCK Overview


The SHACMAN F3000 6×4 400HP 20m³ Dump Truck is a heavy-duty tipper truck designed for construction, mining, quarrying and bulk material transportation.


Its 6×4 chassis configuration and 400HP engine make it a suitable option for customers who need a heavy-duty truck for transporting sand, gravel, soil, stones and other bulk materials.


The approximately 20m³ dump body is designed for loading and unloading bulk materials. The body dimensions, plate thickness, hydraulic lifting system and payload rating should be selected according to the customer's operating requirements.


SHACMAN F3000 6×4 400HP 20m³ Dump Truck Specifications

Truck ModelSX3255DU384
Max. running speed (km/h)85
Drive System6x4
Dimensions
(L*W*H)(mm)
Overall8385*2490*3450
Dump body5600*2300*1500
Thickness (mm)Bottom 8, side 6
Hydraulic lifting systemmiddle lifting or front lifting HYVA
Approach / depature angle (° )28 / 30
Kerb weight (kg)12500
Total mass (kg)25000
Wheel base (mm)3775+1400
Overhang (mm) (front/rear)1525 / 1710
Track width (mm) (front/rear)1860 / 1800
EngineWP12.400E201 ( Weichai engine, Euro 2 )
Rated power400 hp
Gearbox10JSD180 (Fast gear)
Clutch430 Diaphragm type
SteeringZF technology

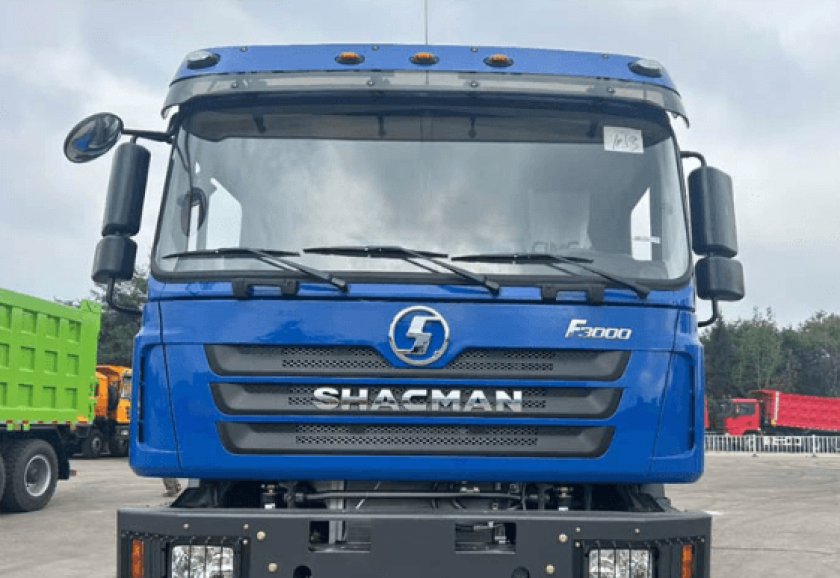

CabMAN F3000 flat roof Cabin with A/C & sleeper
AxleFront9.5 Ton MAN with Drum brake
Rear16 Ton MAN axle,Double reduction 5.262
Tyre12.00R20
Oil tank400L


Key Features of SHACMAN F3000 6×4 400HP 20m³ Dump Truck:

1. Superior Load Capacity and Durability: Utilizing a high-strength steel frame and a MAN-technology 16-ton dual-reduction drive axle, the chassis is robust and durable, specifically designed for heavy-duty transportation in high-intensity, harsh working conditions such as mining areas and construction sites.


2. Powerful and Efficient Power: Equipped with a Weichai 400hp engine, matched with a FAST 10-speed manual transmission, the mature and reliable powertrain delivers high torque output and strong climbing ability and adaptability to complex road conditions.


3. Excellent Adaptability to Working Conditions: Optimized for harsh environments—reinforced bumpers, thickened leaf spring U-bolts (20mm diameter), oil pan protection cover, full LED taillights, and battery box anti-theft protection, significantly improving the vehicle's survivability in sand and gravel conditions and rugged road surfaces.


4. Safety and Comfort Combined: The cab meets European ECE-R29 crash standards; equipped with air-suspended seats and high-power air conditioning, effectively reducing long-distance driving fatigue and enhancing safety.


Applications of SHACMAN F3000 6×4 400HP Dump Truck


The SHACMAN F3000 6×4 dump truck can be used in different heavy-duty transportation applications, depending on the final vehicle configuration.

Typical applications include:


- Construction and infrastructure projects

- Sand and gravel transportation

- Quarry and stone transportation

- Mining material transportation

- Earthmoving and site preparation


The suitable engine, axle ratio, tires, suspension and dump body should be selected according to the actual working conditions.
