The SHACMAN concrete mixer truck is primarily used for transporting and mixing concrete for construction projects. It is equipped with a rotating drum that keeps the concrete in motion, preventing it from hardening during transit. These trucks are widely used on building sites, road construction, bridges, tunnels, and infrastructure developments, ensuring timely and efficient delivery of ready-mixed concrete. SHACMAN’s mixer trucks are valued for their durability, strong chassis, and ability to operate in tough conditions.

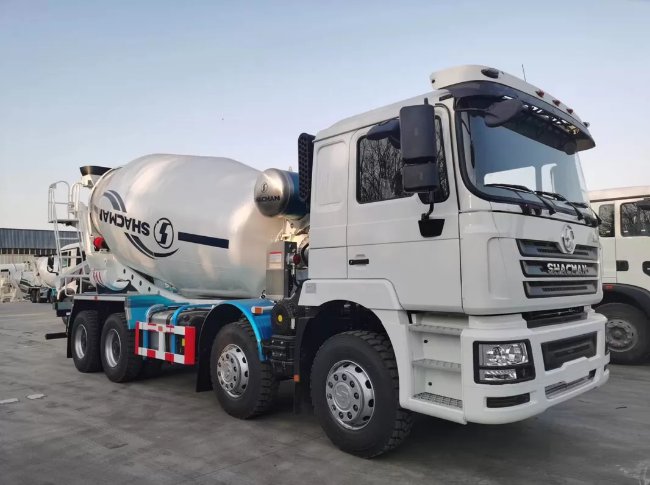

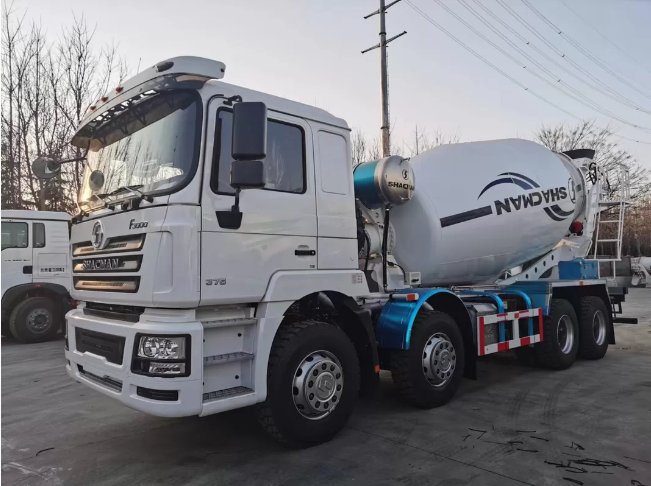

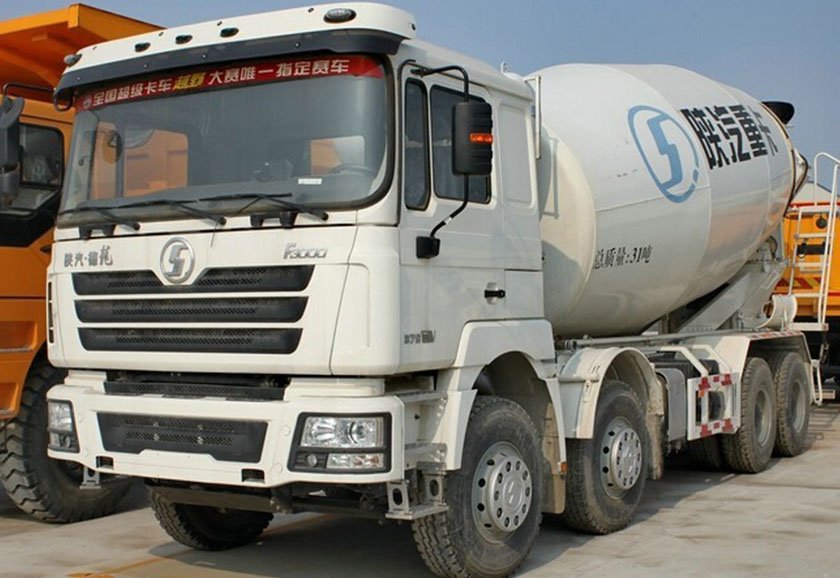

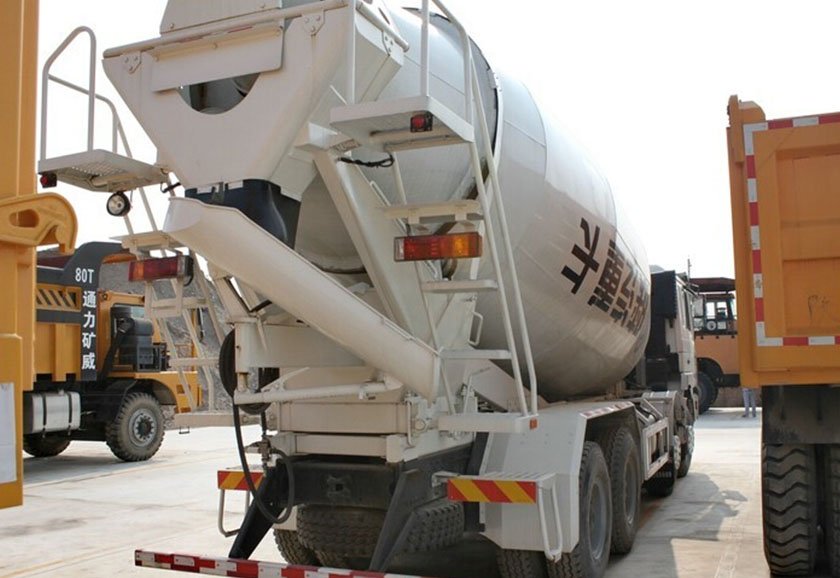

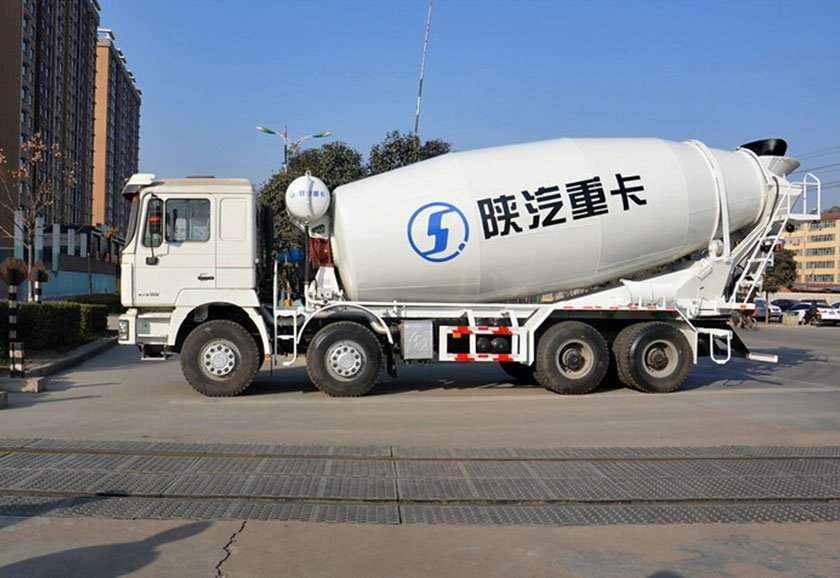

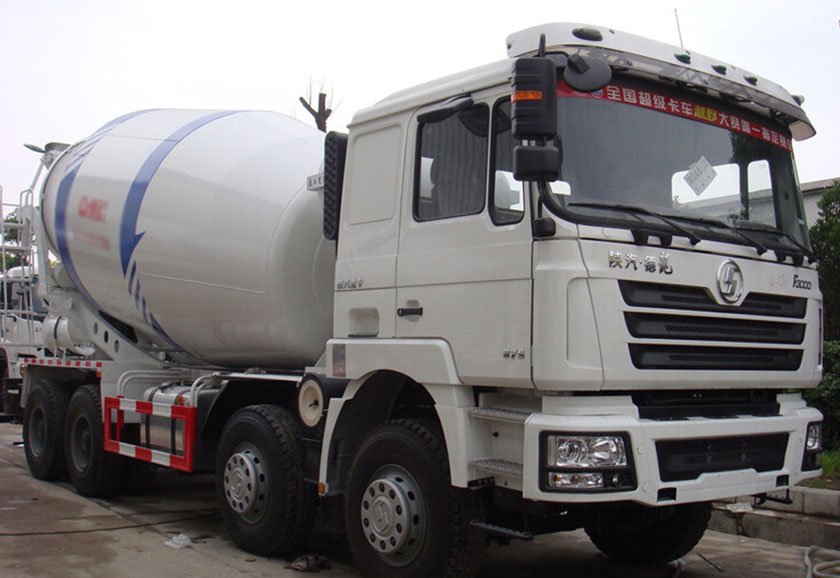

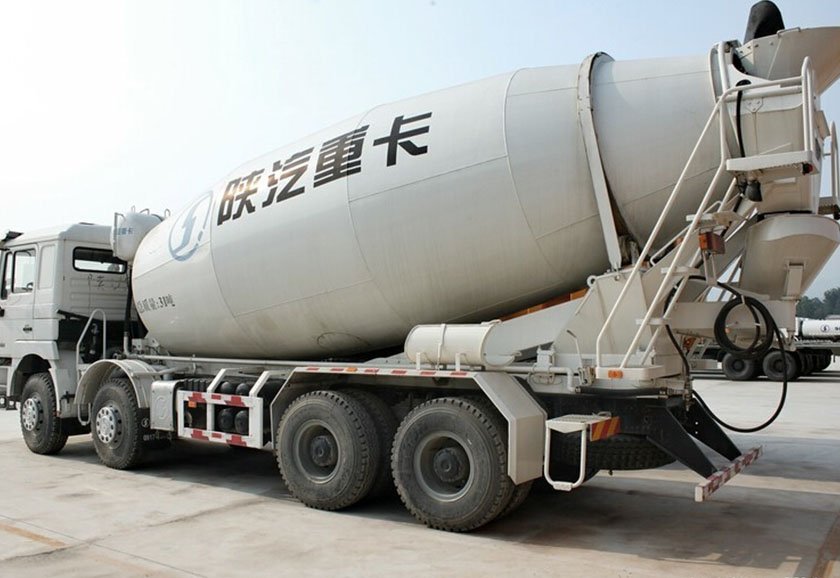

Shacman F3000 8x4 12m3 Concrete Mixer Truck
Shacman F3000 8x4 12m3 Concrete Mixer Truck
Model | 8x4 12m3 concrete mixer truck | |
Whole Vehicle Performance & Parameters | Chassis | shacman |
Curb Weight (Kg) | 15800 | |
Total Vehicle Weight (Kg) | 31000 | |
Outline Dimension(L*B*H) (mm) | 11400x2500x4000 | |
Wheelbase (mm) | 1800+3775+1400mm | |
Front Overhang (mm) | 1525 | |
Rear Overhang (mm) | 2630 | |
Max Traveling speed | 75 | |
Vehicle Configuration | Clutch | Dry Single Disc Clutch (φ430) |
Gear Box | RTD-11509C | |
Driving Type | 8x4 | |
Steering Mechanism | ZF technology | |
Service Brake | Dual-circuit Air Brake | |
Parking Braking | Spring-powered Air-cut-off Brake | |
Auxiliary Brake | Engine Exhaust Brake | |
Tyre | 12.00R20 radial tyre | |
Engine Parameters | Model | ISME385 30 |
Type | Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | |
Emission Standard | Euro3 | |
Max Power (KW) | 385HP(2200r/min) | |
Max Torque | 1500 N.m | |
Mixing Drum Parameters | Max Mixing Cubage (m3) | 12 |
Feeding Speed (m3) | ≥3 | |
Discharging Speed (≥m3) | ≥3 | |
Leftover Rate | <1% | |
Max Rotating Speed (r/min) | 14---16 | |
Mixing Drum Obliquity (°) | 10 | |
Max Mixing Drum Diameter (mm) | φ2412 | |
Driving System | Hydraulic Pump | Italy 089 |
Hydraulic Motor | Italy 090A | |
Speed reducer | TOP P75S | |
Water supply mode | Water pump; pneumatic pump | |
You're welcome to contact us for quotations. We’re happy to provide competitive pricing and detailed information based on your specific needs. Please feel free to reach out with your inquiries — our team is ready to assist you.
