Good Price SHACMAN H3000 6x4 Tipper Truck for Sale

Key Features:

✅Reliable & Fuel-Efficient Engine--Powered by the Weichai diesel engine, delivers high torque with better fuel efficiency.

✅6x4 rigid drive--Superior load distribution for heavy duty loading, Excellent traction on poor roads.

✅Robust Hydraulic Dumping System--Fast and stable lifting cycle, hydraulic pump driven by power take-off (PTO) from the transmission, reliable and easy to service.

✅Durable Dump Body--Reinforced floor and side panels with extra crossmembers to handle heavy loads like rocks, sand, gravel, and demolition debris.

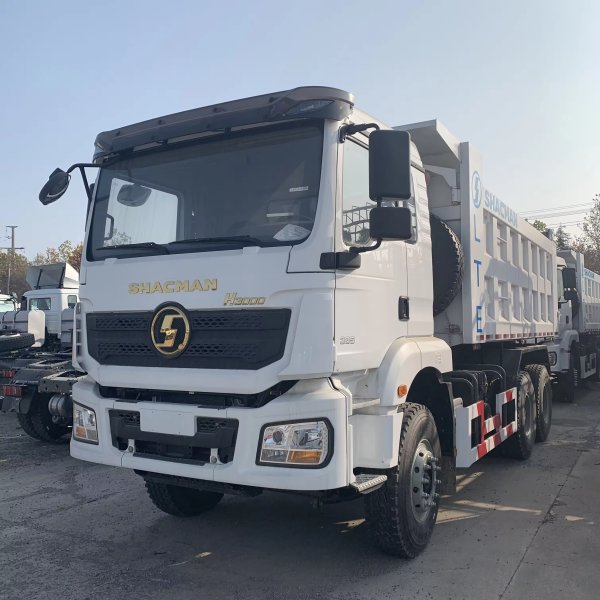

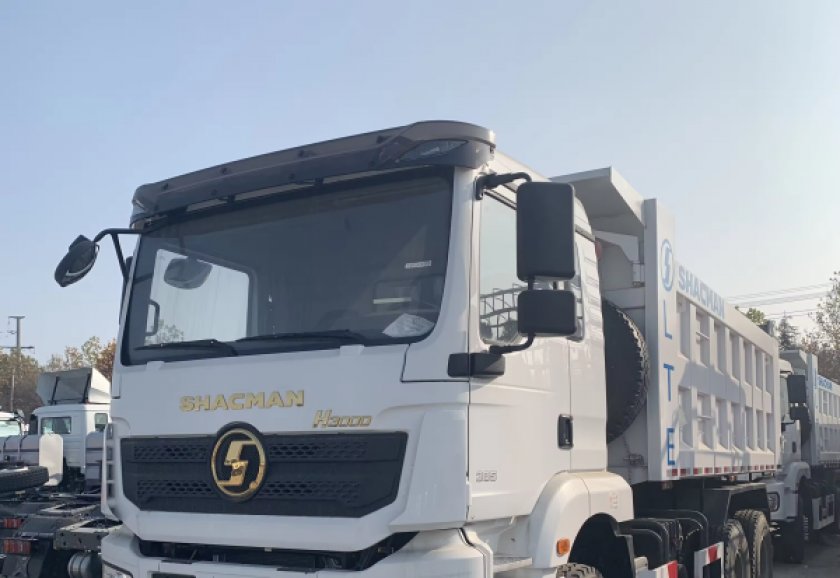

The SHACMAN H3000 6×4 380HP Tipper Truck is designed for construction, mining, quarrying and bulk material transportation.


This truck is equipped with a Weichai WP10.380E22 diesel engine rated at 380HP, a FAST 10JSD180+QH50 manual transmission and a 6×4 heavy-duty chassis.

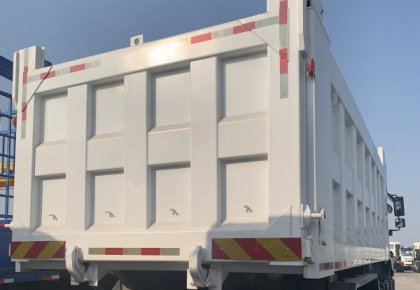

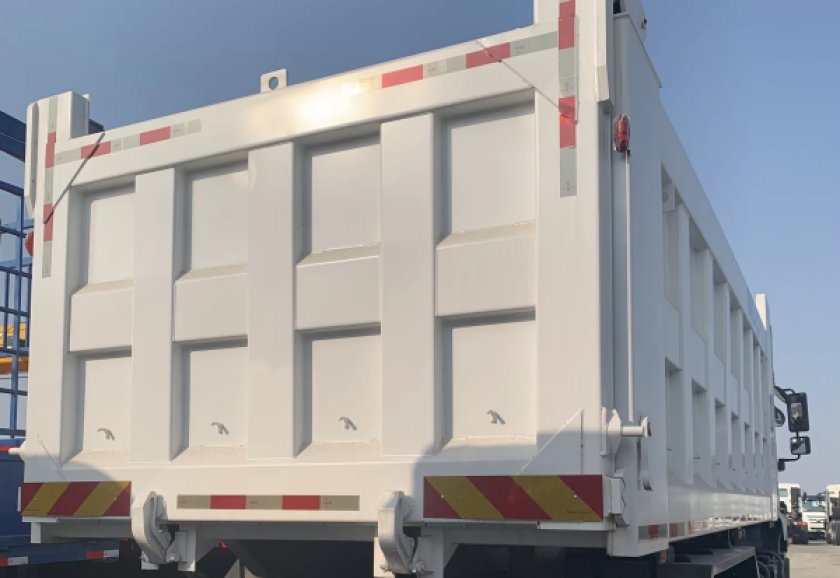

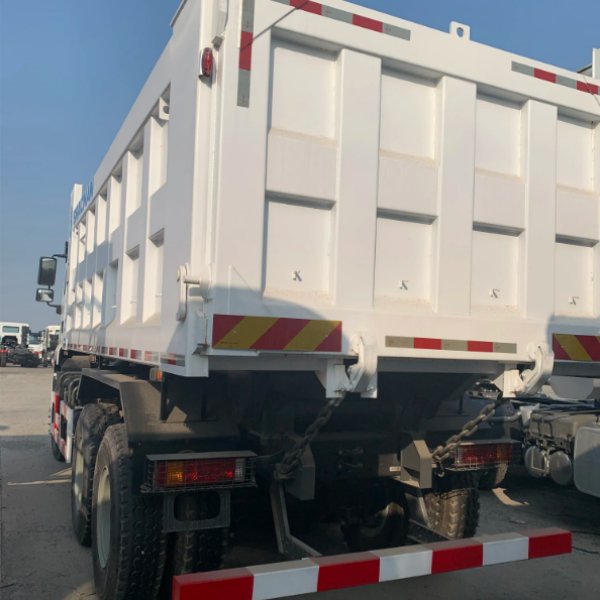

Its dump body measures 5600×2300×1500mm, with a calculated geometric volume of approximately 19.32m³. The body features an 8mm floor plate and 6mm side plates, together with a front hydraulic tipping system.


The SHACMAN H3000 tipper truck is suitable for transporting materials such as sand, gravel, soil and stones, subject to the vehicle's rated payload and local road regulations.


Contact us for the latest price, complete specifications, real vehicle photos and export configuration.


Good Price SHACMAN H3000 6x4 Tipper Truck for Sale

Good Price SHACMAN H3000 6x4 Tipper Truck for Sale

Good Price SHACMAN H3000 6x4 Tipper Truck for Sale


SHACMAN H3000 6×4 380HP Tipper Truck Specifications:

Basic InformationModelSX3255MT384
Drive type6x4
Driving modeLeft Hand Driving
Horsepower380hp
DimensionLength Estimated(mm)8500
Width Estimated (mm)2500
Height Estimated (mm)3450
Frame(mm)850x300(8+7)
Wheelbase(mm)3775+1400
Rear hang(mm)850
Upper bodyDump body size (mm)5600X2300X1500
Bucket capacity (cubic meters)19.32cbm
Thickness of body steel (mm)Floor 8 mm; side 6 mm
Tipping systemFront tipping system
EngineBrandWEICHAI
ModelWP10.380E22
Emission standardEuro Ⅱ
AxlesBrandHD
Front axle(kg)9500
Rear axle(kg)16000
Ratio5.92
Transmission10JSD180+QH50
SuspensionFront and rear multi leaf spring

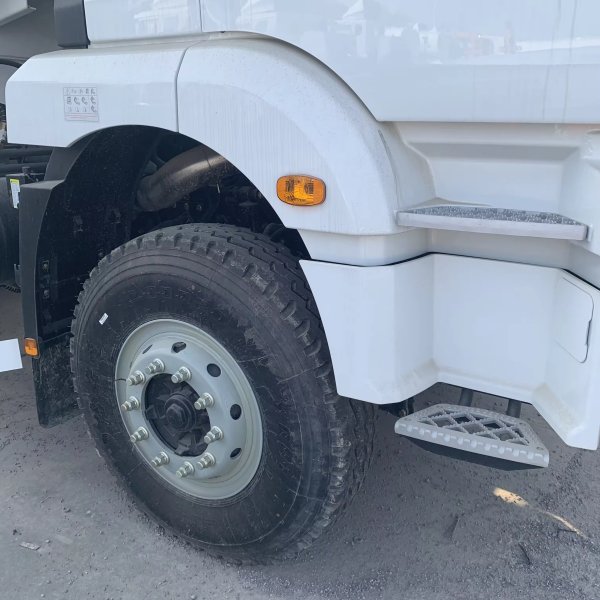

Tyre12.00R20(10+1) Pieces

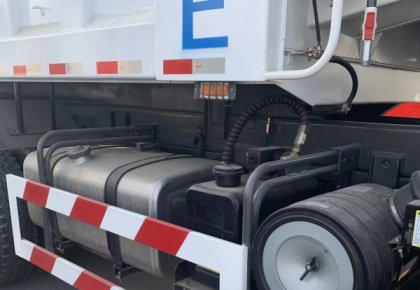

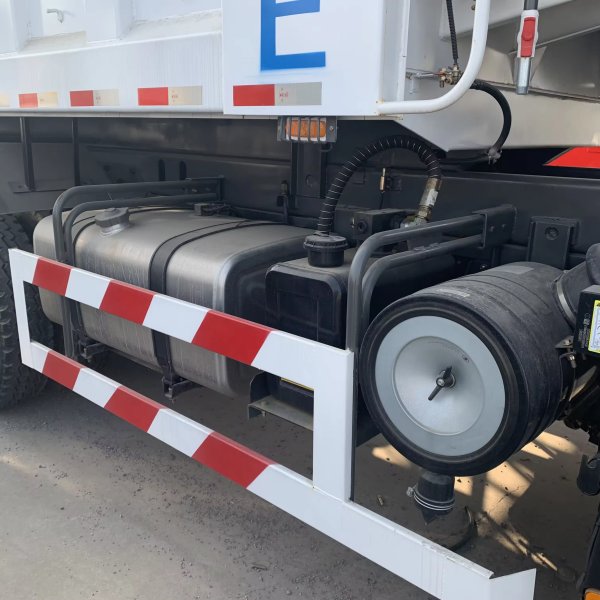

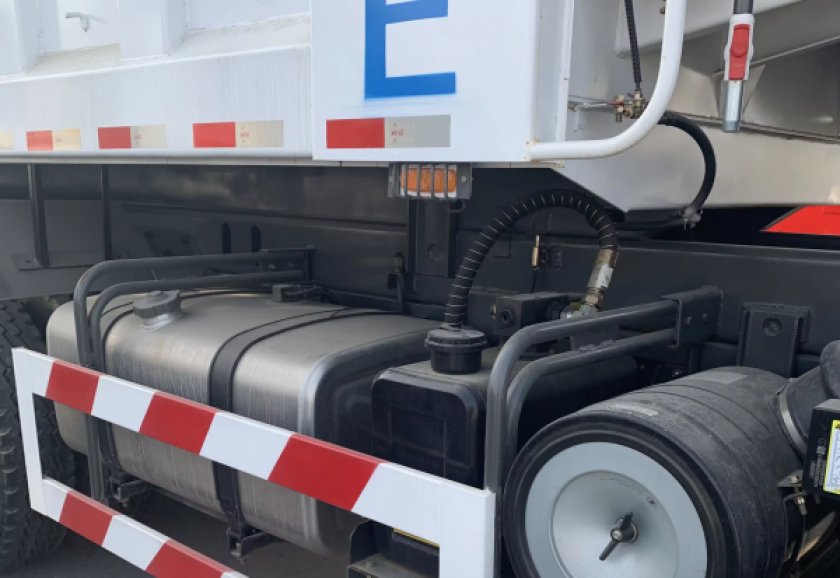

Tank capacity300L
Tank MaterialAluminum alloy

The SHACMAN H3000 6x4 Tipper Truck offers an unbeatable combination of affordability, reliability, and performance for construction, mining, and earthmoving projects.


Applications of SHACMAN H3000 6×4 Tipper Truck

The SHACMAN H3000 6×4 tipper truck can be used in different heavy-duty material transportation applications, depending on the operating conditions and vehicle configuration.


Typical applications include:


- Construction site material transportation

- Sand and gravel transportation

- Quarry and stone transportation

- Mining material transportation

- Road construction and earthmoving projects


The appropriate payload, axle configuration, tires and dump body should be selected according to the actual working environment.
