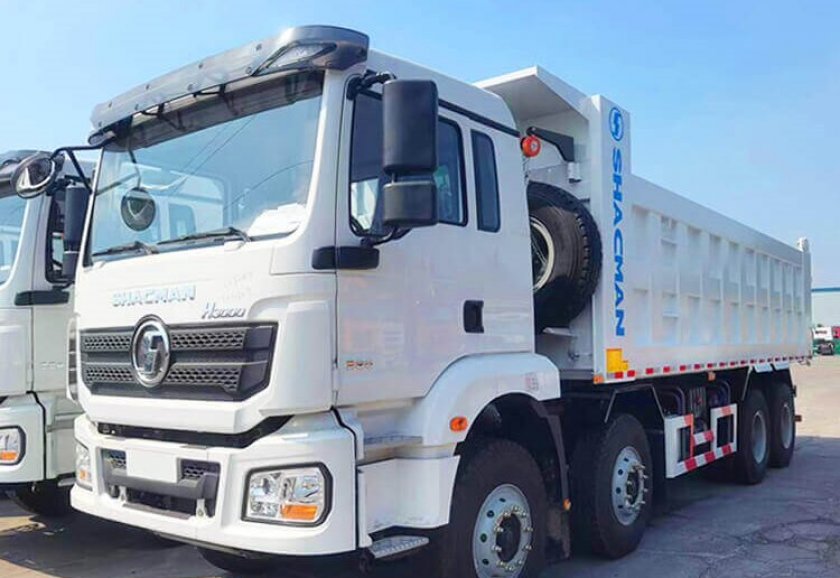

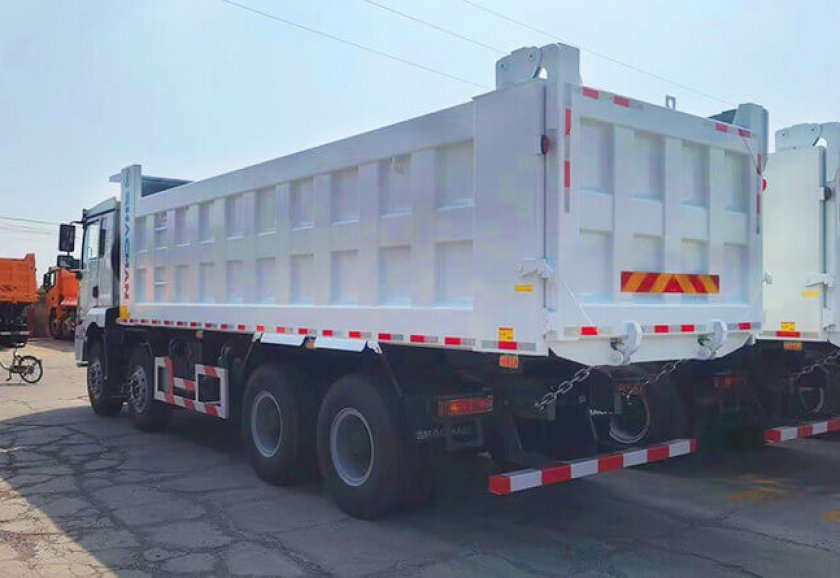

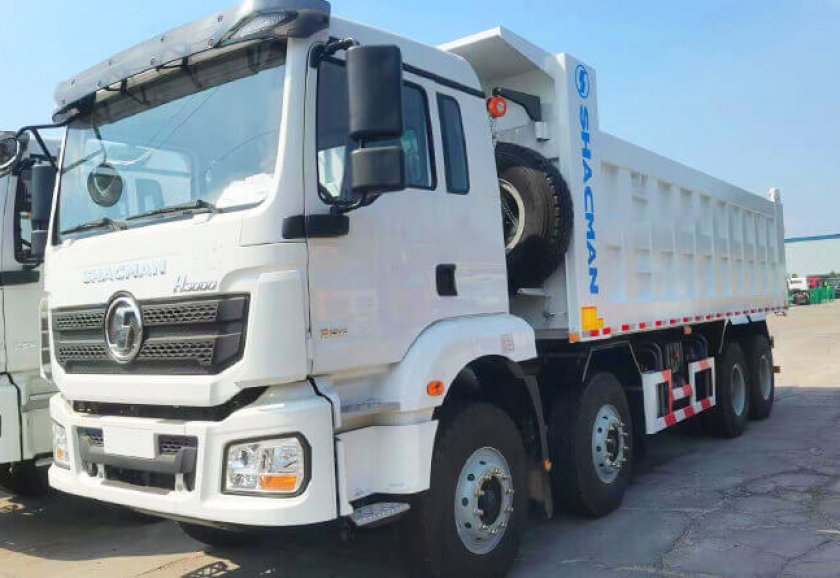

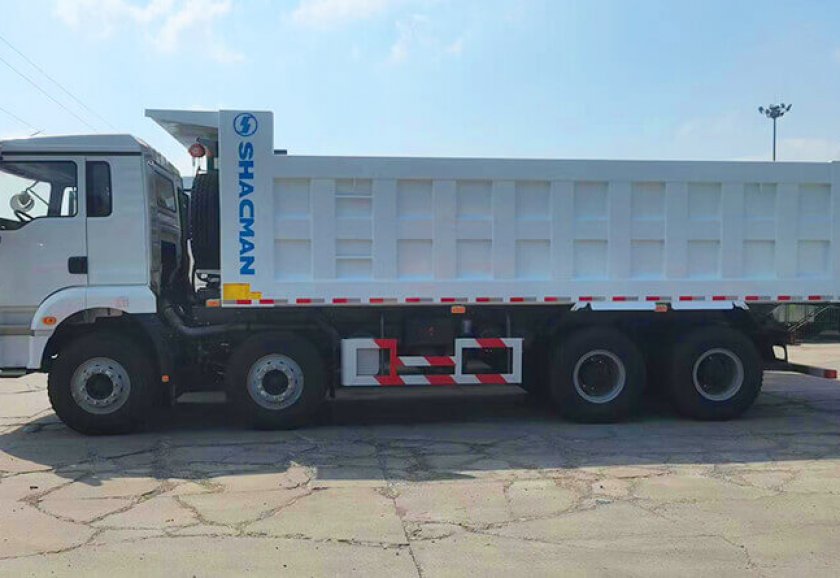

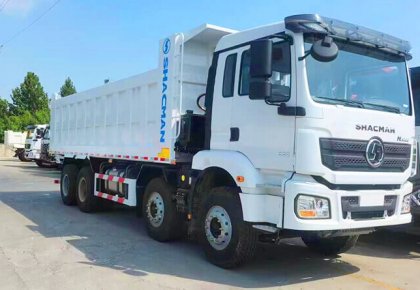

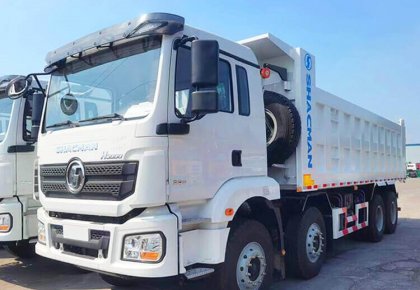

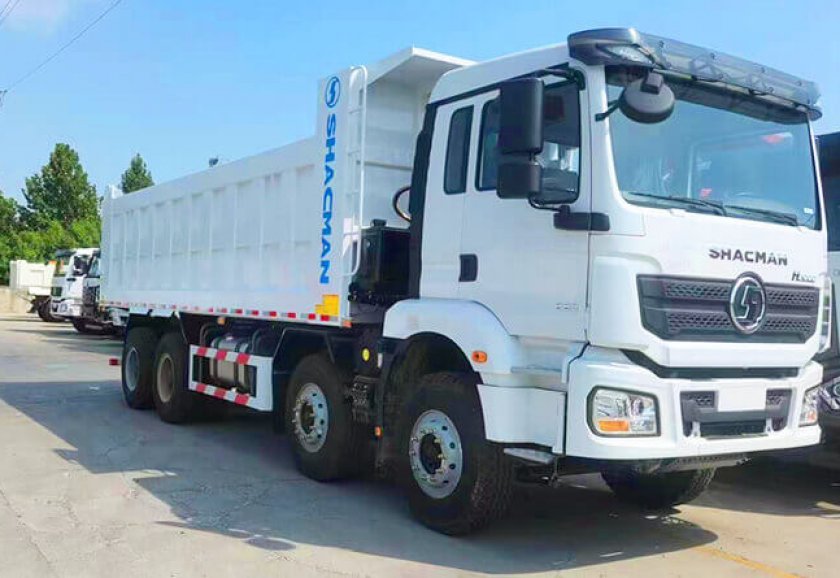

SHACMAN H3000 8X4 430HP DUMP TRUCK
| MODEL | Shacman X3000 8x4 Dump Truck SX33156V386C | |
| Driver position | Left Hand | |
| Driving type | 8*4 | |
| Wheelbase(mm) | 1800+3775+1400 | |
| Max. Speed(km/h) | 75km/h | |
| Engine | Brand | CUMMINS |
| Model | ISME420 30 | |
| Emission Standard | EURO III | |
| Rated output power | 308KW/420HP | |
| Displacement(L) | 10.8L | |
| Transmission | Brand | FAST |
| Model | 12JSD200T+Iron shell+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double-stage reduction axle; speed ratio: 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850x300(8+7) | |
| Suspension | Front and rear multi-leaf spring, four main films+Four horse riding | |
| Fuel tank | 400L Aluminum alloy | |
| Wheels and tires | 12.00R24 10+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | Shacman X3000 8x4 Dump Truck medium length flat top cab without top air deflector, hydraulic main seat, four point hydraulic suspension, ordinary rearview mirror, electrically controlled automatic temperature control air conditioning, manual window rocking machine, manual flipping, metal bumper with light protection net, three-level boarding pedal, central locking (with remote control), oil bath air filter, ordinary exhaust, water tank protection grille, oil pan protection grille, tail light protection grille, 180Ah maintenance free battery, SHACMAN Telematics (without screen) 2 hazard warning lights, SHACMAN logo, full French logo, equipped with a long-lasting coarse filter, iron air reservoir, nut protective cap, TR 668 for front wheel, TR 918 for rear wheel and spare tire, reverse buzzer, anti-theft battery box, and anti-theft fuel tank cap | |
| Upbody | 7600*2300*1500(mm) | |
Advantages:
1. Lightweight and Comfortable: Emphasizing lightweight design, the cab features a four-point air suspension system, offering superior sealing and shock absorption to reduce driver fatigue.
2. Mature Powertrain: Powered by a Weichai 430hp engine and a Fast gearbox, delivering high torque for strong acceleration and hill climbing, suitable for heavy loads.
3. High-Load-Bearing Chassis: Equipped with a 16-ton rear axle and multi-leaf spring suspension, combined with a high-strength frame, providing strong load-bearing capacity suitable for harsh road conditions.
4. Adaptability to Various Working Conditions: High chassis height and ground clearance, with an optional sand filtration system, adaptable to harsh environments such as construction sites and mining areas.
Contact us for pricing and configuration options！
