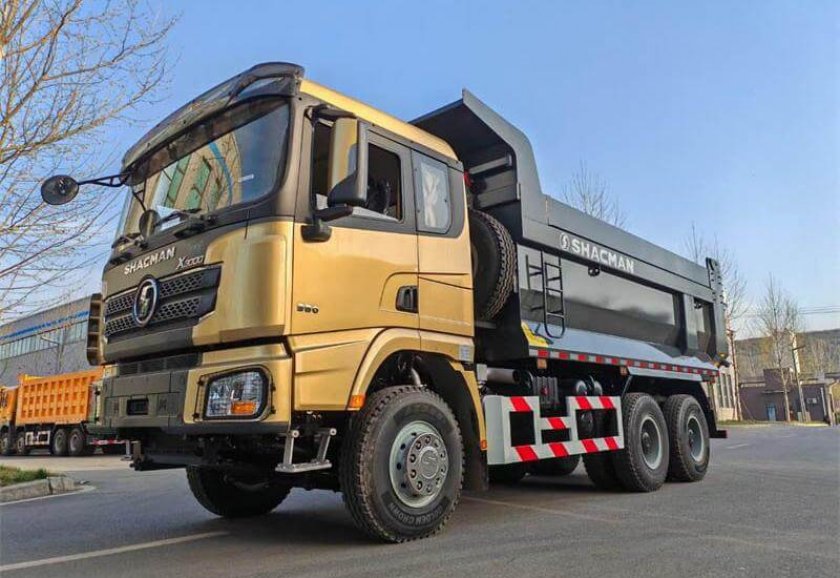

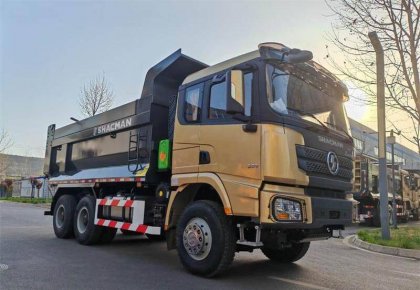

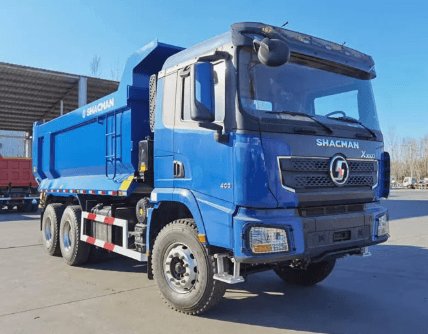

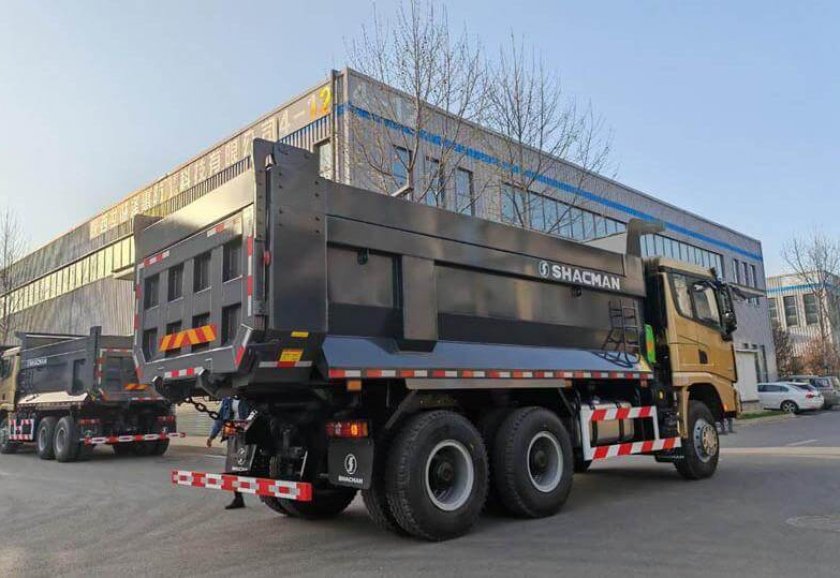

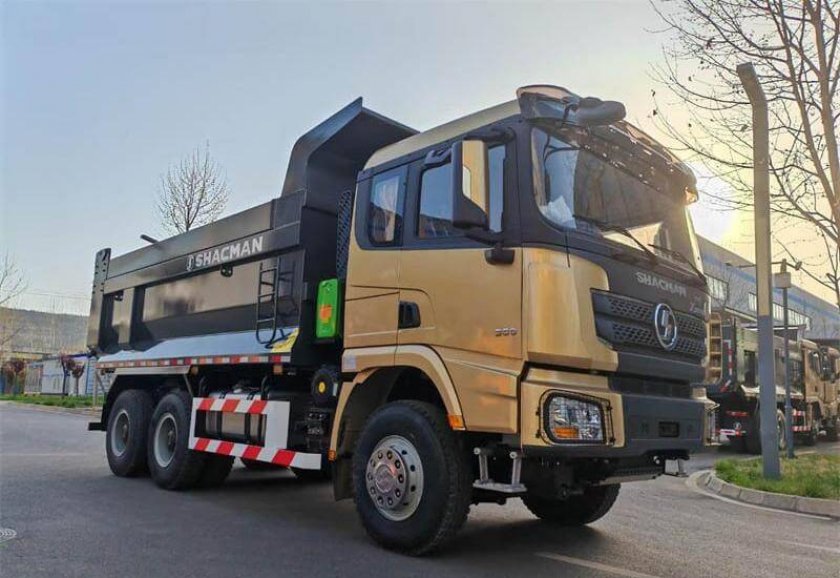

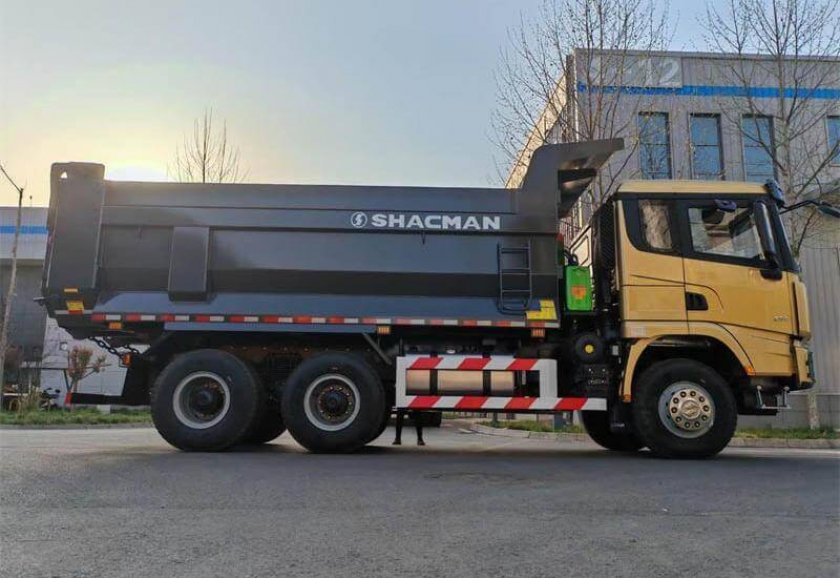

SHACMAN X3000 6X4 400HP DUMP TRUCK Overview

The SHACMAN X3000 6x4 400HP dump truck is a heavy-duty tipper truck designed to transport and unload bulk materials. It is suitable for construction projects, mining operations, road building and other material transportation tasks, subject to the selected vehicle configuration and local operating requirements.


This model combines a 6x4 drive configuration with a 400HP engine option and a dump body designed for approximately 20 cubic meters of material. The vehicle can be equipped with different engine, transmission, axle, suspension and hydraulic lifting configurations.


SHACMAN X3000 6x4 400HP 20CBM Dump Truck Specifications

CategoryDetails
ModelSX3259XD404
Drive Type6X4
Wheelbase3975 + 1400 mm
Dimensions (L×W×H)8800 X 2550 X 3500 mm
Curb Weight12.5 tons
Payload Capacity12.37 tons
Gross Vehicle Weight25 tons
Engine ModelWP12.400E201
Horsepower400 HP
Displacement11.6 L
Max Torque2000 N·m
Emission StandardEuro 2
TransmissionFast 12JSD200T, 12 forward + 2 reverse
AxlesFront: 7T MAN, Rear: 16T MAN (ratio 5.262)
Cargo Box (L×W×H)5600 × 2350 × 1500 mm
Fuel Tank400L aluminum alloy
SuspensionMulti-leaf springs (10/12)
Tires12.00R20, 10 pcs + 1 spare
Braking SystemABS
CabinX3000 with A/C


ADVANTAGES


1.Golden Powertrain

Equipped with a Weichai 400hp engine, matched with a Fast gearbox and Hande axles, forming a mature and reliable "golden powertrain" that is both powerful and durable.


2. Load Capacity and Passability

Utilizing a 6x4 drive system, a reinforced chassis, and a 16-ton double-reduction axle, it boasts strong load-bearing capacity, suitable for heavy loads and complex road conditions. The chassis offers excellent stability, preventing wheel spin even when fully loaded, and its ground clearance ensures good passability.


3. Comfort and Safety

The cab features an air-suspension seat, automatic air conditioning, and electric heated rearview mirrors. The cab is well-sealed, with low noise, and meets European ECE-R29 crash standards.


4. Economy and Efficiency

The vehicle features a lightweight design, while the engine's high torque and low-speed characteristics result in better fuel economy, making it more fuel-efficient than competitors.


Your SHACMAN X3000 Dump Truck Supplier in China

We supply SHACMAN heavy-duty trucks for international buyers, including dump trucks, tractor trucks and cargo trucks. Our team can assist customers with vehicle configuration confirmation, technical specification documents, quotation preparation and export-related communication.


For the SHACMAN X3000 6x4 400HP 20CBM dump truck, please contact us with your destination country, required quantity and operating requirements. We will check the available vehicle specifications and provide a quotation based on your needs.
