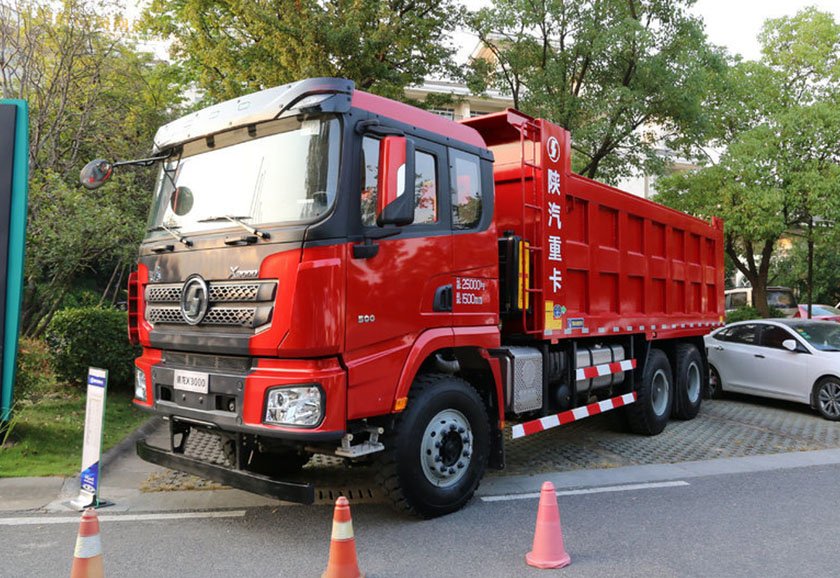

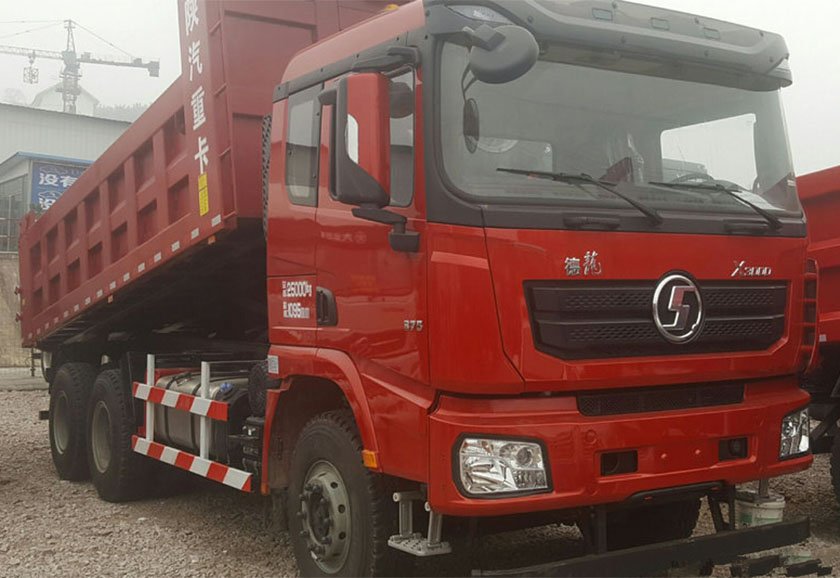

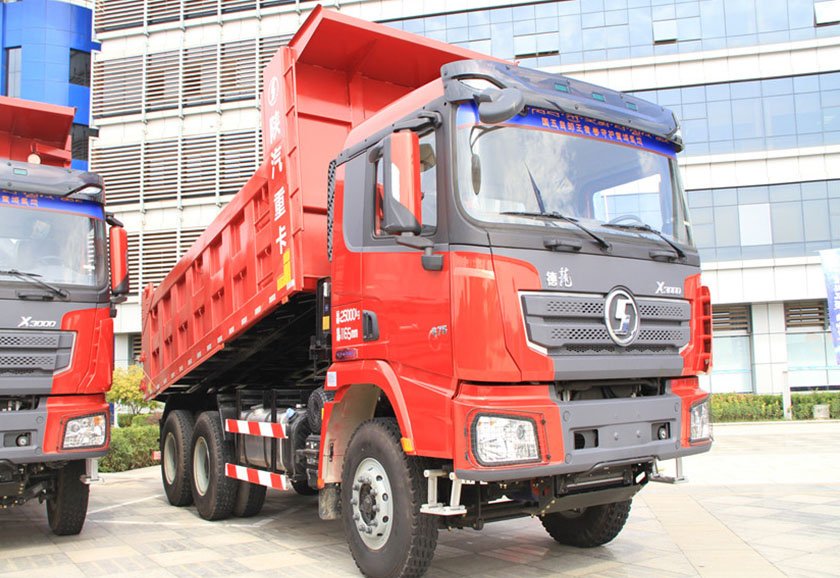

Shacman X3000 6x4 380hp 19m3 Dump Truck Overview:


The SHACMAN X3000 6×4 380HP dump truck is designed for heavy-duty bulk material transportation in construction, quarrying and infrastructure projects. It features a WEICHAI WP10.380E22 engine, a FAST 12-speed manual transmission and a 19m³ dump body.


With a 6×4 drive configuration, STR axles and a front hydraulic lifting system, this X3000 tipper truck offers a practical configuration for transporting sand, gravel, soil and other bulk materials.


Left-hand drive is the listed standard configuration, with right-hand drive available as an option. Contact us to confirm the technical specifications, destination-market requirements and export quotation.


SHACMAN X3000 6×4 380HP Dump Truck Specifications:


Traction type

6×4

Drive System

LHD/(RHD is optional)

Cabin

X3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.380E22 EuroII

Rated power

380hp

Engine displacement

11.596 liters

Gearbox

Fast 12 speeds (12JSD180T)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

6.5 Ton STR

Rear

16 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20

Fuel tank

400L

Kerb weight (kg)

14200

Total mass (kg)

31000

Wheel base (mm)

1800+3600+1350

Overhang (mm) (front/rear)

1525/1955

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/33

Dump body

Size

5600x2300x1500 19cbm

Thickness

Bottom 8, front 6, side 4

Lifting system

Front lifting

Overall dimensions(L*W*H)

8600x2500x3450



WEICHAI WP10.380E22 380HP Engine and FAST Transmission

The SHACMAN X3000 6×4 dump truck is listed with a WEICHAI WP10.380E22 diesel engine rated at 380 HP. The engine is paired with a FAST 12JSD180T 12-speed manual transmission.


This powertrain configuration is designed for heavy-duty transportation tasks involving bulk materials such as sand, gravel, soil and crushed stone.


The listed emission standard is Euro II. Before ordering, buyers should confirm the engine displacement, engine identification plate and applicable emission requirements for their destination country.


The transmission and engine configuration can be confirmed with the supplier before the final quotation and order.


Applications:

The SHACMAN X3000 6×4 380HP 19m³ dump truck is designed for bulk material transportation in construction, quarrying, earthmoving and selected mining operations. It can be configured to transport materials such as sand, gravel, soil and crushed stone. The final vehicle configuration should be selected according to the operating environment, road conditions and local transportation regulations.
