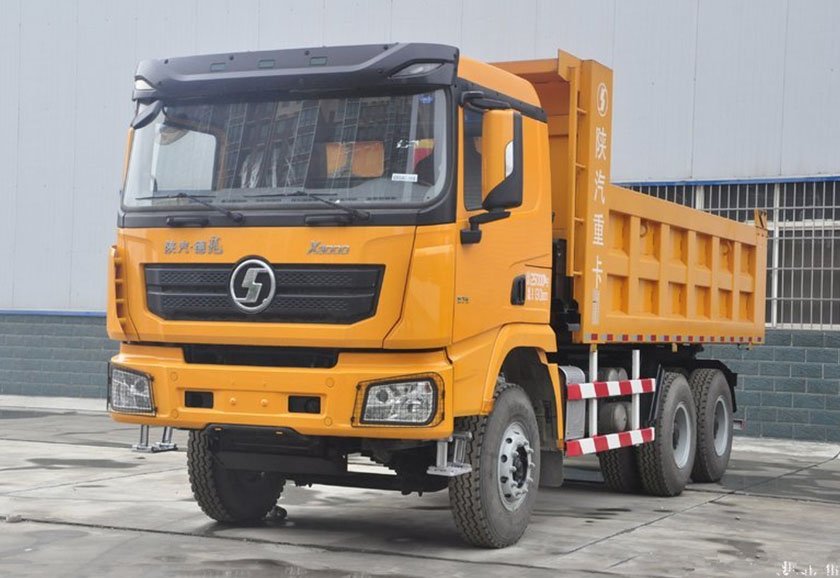

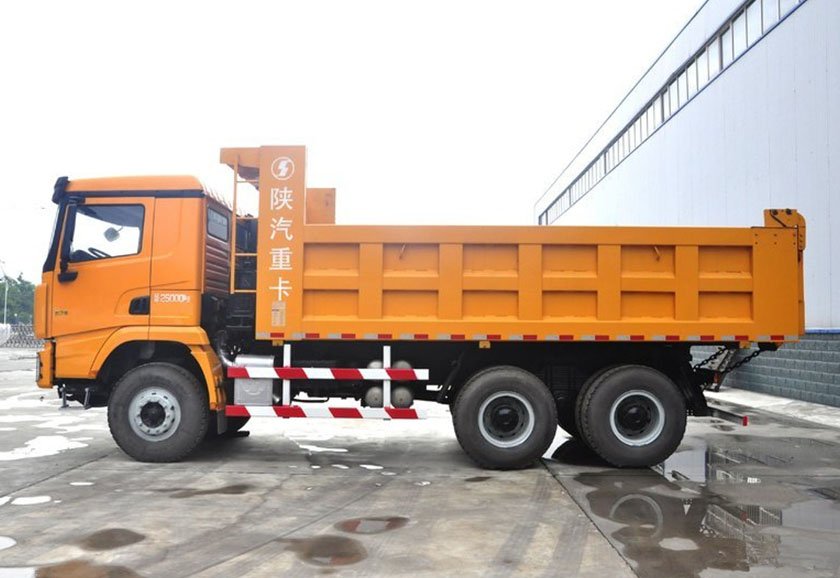

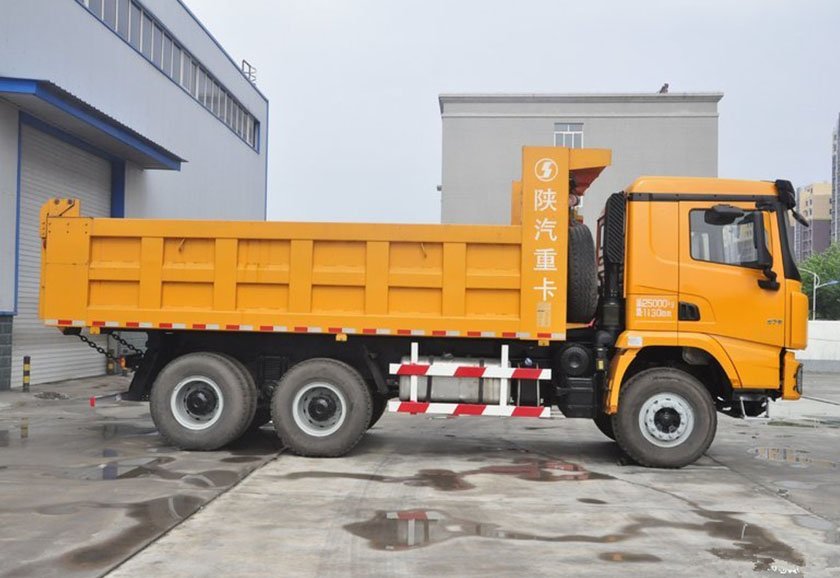

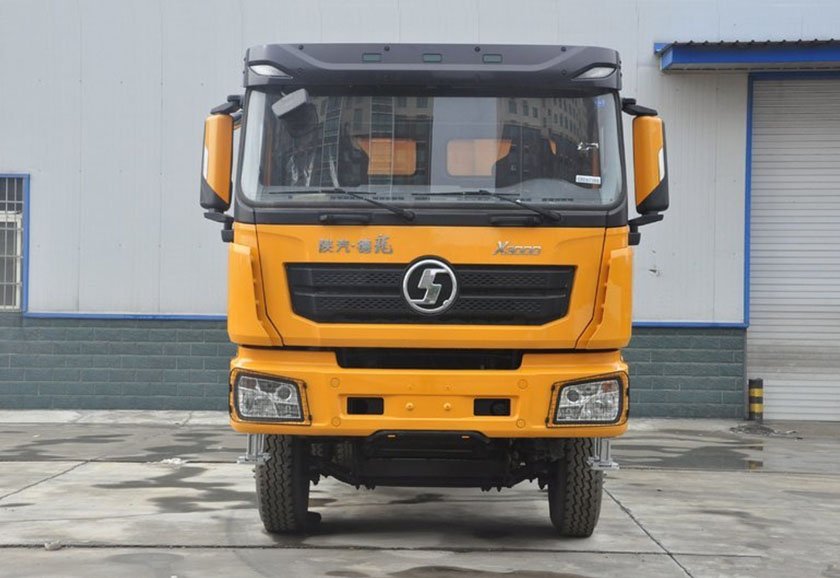

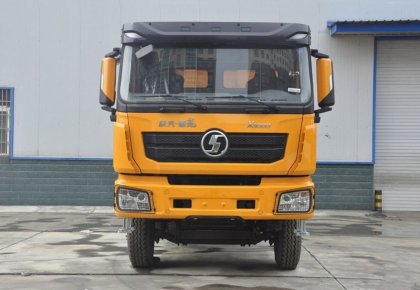

Shacman X3000 6x4 340hp 19m3 Tipper Truck Overview:

The SHACMAN X3000 6×4 340HP tipper truck is designed for demanding construction, quarrying and bulk material transportation applications. Equipped with a WEICHAI WP10.340E22 engine, FAST 12-speed transmission and a 19m³ dump body, this truck provides a practical solution for transporting sand, gravel, soil and other bulk materials.


With a reinforced 6×4 chassis, heavy-duty rear axle configuration and front hydraulic lifting system, the SHACMAN X3000 is suitable for customers looking for a dependable dump truck for construction projects and material handling operations.


Left-hand drive is standard on this listed configuration, with right-hand drive available as an option. Contact us for configuration details, export pricing and delivery information.


SHACMAN X3000 6×4 340HP Tipper Truck Specifications:


Traction type

6×4

Drive System

LHD/(RHD is optional)

Cabin

X3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.340E22  EuroII

Rated power

340hp

Engine displacement

9.726 liters

Gearbox

Fast 12 speeds (12JSD180T)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

6.5 Ton STR

Rear

16 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20

Fuel tank

400L

Kerb weight (kg)

14200

Total mass (kg)

31000

Wheel base (mm)

3800+1350

Overhang (mm) (front/rear)

1525/1955

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/33

Dump body

Size

5600x2300x1500 19cbm

Thickness

Bottom 8, front 6, side 4

Lifting system

Front lifting

Overall dimensions(L*W*H)

8680x2500x3450


WEICHAI WP10.340E22 Engine and FAST 12-Speed Transmission

The SHACMAN X3000 6×4 19m³ tipper truck is equipped with a WEICHAI WP10.340E22 diesel engine with a rated output of 340 HP and a displacement of 9.726 liters.


The engine is paired with a FAST 12JSD180T 12-speed manual transmission. This powertrain configuration is intended for heavy-duty transportation tasks involving sand, gravel, soil and other bulk materials.


The listed engine emission standard is Euro II. Buyers should confirm local emission regulations and import requirements before ordering, especially when purchasing trucks for markets with specific vehicle emission standards.


Contact us to confirm engine availability, technical details and export configuration.


SHACMAN Dump Truck Supplier in China

Qingdao Seize The Future Automobile Sales Co., Ltd. supplies SHACMAN commercial vehicles for international customers. Our product range includes SHACMAN dump trucks, tractor trucks, cargo trucks and other commercial vehicle configurations.


For the SHACMAN X3000 6×4 340HP 19m³ tipper truck, we can assist buyers with product configuration confirmation, vehicle quotations, export documentation and shipping arrangements.


Before placing an order, customers can confirm the engine model, emission standard, steering position, dump body specifications, tire configuration and other requirements with our sales team.

Contact us to discuss your truck purchasing requirements and request a quotation.
