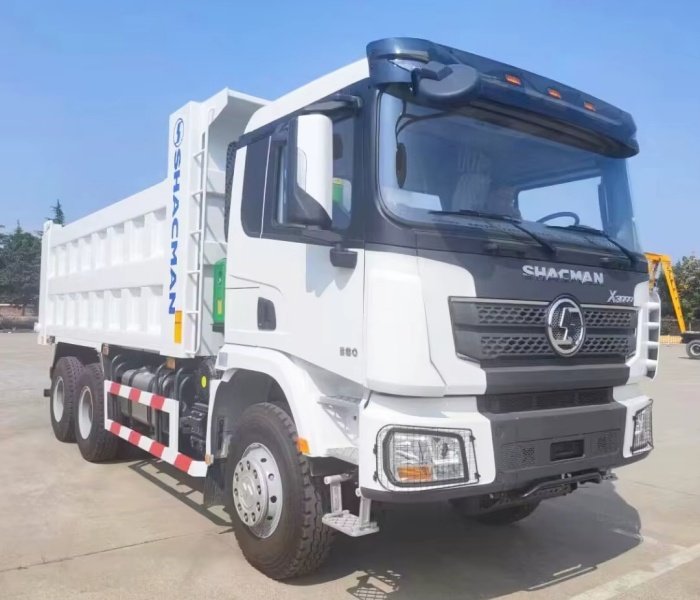

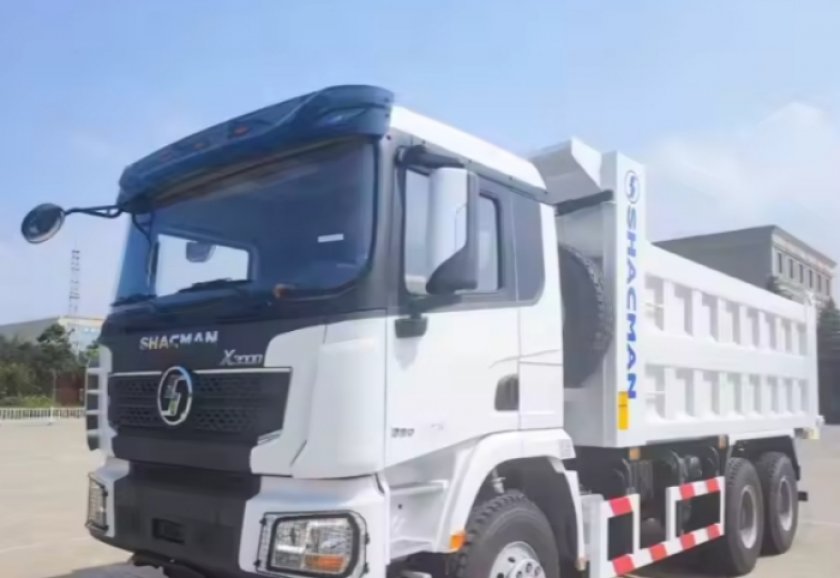

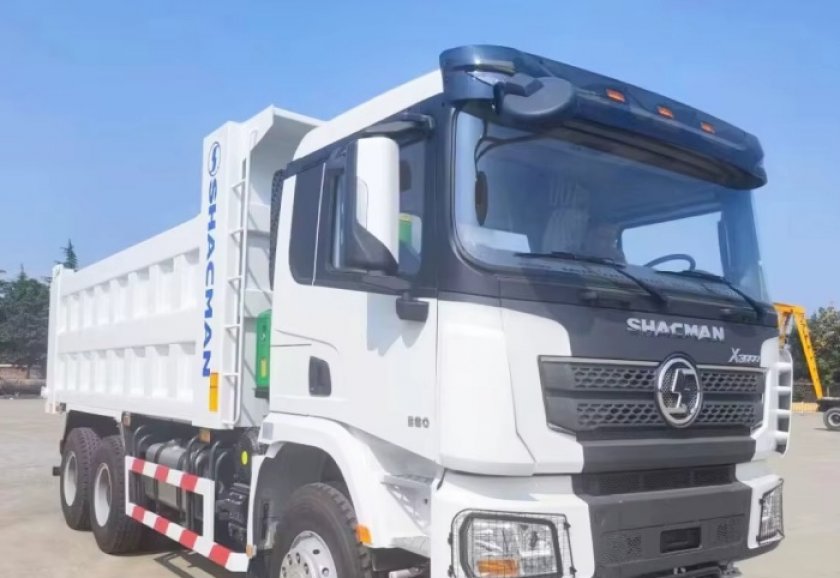

SHACMAN X3000 380hp 6x4 Heavy Duty Dump Truck for Sale

Key Features:

✅Reliable & Fuel-Efficient Engine--Powered by the Weichai diesel engine, delivers high torque with better fuel efficiency.

✅6x4 rigid drive--Superior load distribution for heavy duty loading, Excellent traction on poor roads.

✅Robust Hydraulic Dumping System--Fast and stable lifting cycle, hydraulic pump driven by power take-off (PTO) from the transmission, reliable and easy to service.

✅Durable Dump Body--Reinforced floor and side panels with extra crossmembers to handle heavy loads like rocks, sand, gravel, and demolition debris.


SHACMAN X3000 6×4 380HP Dump Truck Specifications:

Basic InformationBrandSHACMAN
Drive type6x4
Driving modeLeft Hand Driving
Horsepower380hp
Logistics typesand, gravel/coal/muck etc.
CabX3000 medium-length flat-top cab
DimensionMax. length(mm)8500
Max. width(mm)2550
Max. height(mm)3500
Frame(mm)850x300(8+7)
Wheelbase(mm)3775+1400
Rear hang(mm)850
Upper bodyDump body size (mm)5600X2300X1500
Bucket capacity (cubic meters)19.32cbm
Tipping systemFront tipping system
EngineBrandWEICHAI
ModelWP10.380E22
Emission standardEuro Ⅱ
AxlesBrandMAN
Front axle(kg)9500
Rear axle(kg)16000 (double reduction)
Ratio5.92
Transmission10JSD180+QH50
SuspensionFront and rear multi leaf spring, four main leaf+four U-bolts
Tyres12.00R20 (10+1)pcs
FuelDiesel
Tank capacity300L
Tank MterialAluminium alloy

The SHACMAN X3000 380HP 6x4 dump truck is a robust and high-performance heavy-duty vehicle designed for demanding mining, construction, and quarrying operations.



Applications of SHACMAN X3000 Dump Truck

The SHACMAN X3000 6×4 dump truck can be configured for a range of heavy-duty material transportation tasks, including:

  • Construction Projects: Transporting sand, gravel and construction materials.

  • Earthmoving Operations: Moving soil and excavated materials.

  • Quarry Operations: Transporting aggregates and crushed stone.

  • Infrastructure Development: Supporting road construction and other civil engineering projects.

The recommended engine, axle ratio, tire type and dump body configuration depend on road conditions, payload requirements and local regulations.


Frequently Asked Questions About SHACMAN X3000 6×4 380HP Dump Truck

1. What is the SHACMAN X3000 6×4 380HP dump truck?

The SHACMAN X3000 6×4 380HP dump truck is a heavy-duty diesel truck designed for material transportation and tipping operations. The referenced configuration uses a Weichai WP10.380E22 engine rated at 380 HP and a 6×4 drive system.


2. What engine does the SHACMAN X3000 380HP dump truck use?

The referenced configuration is equipped with a Weichai WP10.380E22 diesel engine with a rated power of 380 HP (279 kW). Please confirm the engine model on the final vehicle specification sheet.


3. What is the emission standard of this SHACMAN X3000 dump truck?

The referenced WP10.380E22 configuration is listed as Euro II. The available emission configuration must be checked according to the destination country's import regulations.


4. What transmission is used in the SHACMAN X3000 6×4 dump truck?

The referenced configuration uses a FAST 12JSD200T-B transmission with QH50 power take-off. The final transmission configuration should be confirmed before ordering.


5. What is the dump body size?

The referenced configuration has a dump body measuring 5800×2300×1700 mm. Actual dimensions may vary according to the vehicle configuration.


6. What is the thickness of the dump body steel?

The referenced configuration uses an 8 mm bottom plate and 6 mm side plates. Buyers should confirm the steel material and thickness in the final order specification.


7. What is the payload capacity of the SHACMAN X3000 6×4 dump truck?

Payload capacity depends on the vehicle's kerb weight, gross vehicle weight, axle ratings and local regulations. Please request the official vehicle specification sheet for the confirmed rated payload.


8. What is the fuel tank capacity?

A 400L aluminum alloy fuel tank is listed in the referenced configuration. Please confirm this specification for the vehicle being quoted.


9. Is the SHACMAN X3000 suitable for mining operations?

The X3000 6×4 dump truck can be configured for certain mining and quarry material transportation tasks. The appropriate configuration depends on road conditions, material density, payload requirements and operating intensity.


10. Can I customize the dump body?

Dump body dimensions, body structure and other configuration details may be adjustable depending on the available vehicle specification and manufacturer confirmation.


11. Is the SHACMAN X3000 available with left-hand drive?

Drive position depends on the vehicle configuration available for the destination market. Please specify whether you require left-hand drive or right-hand drive when requesting a quotation.


12. Can you export SHACMAN X3000 dump trucks to my country?

Please provide your destination country and required vehicle configuration. We can check the available export options and discuss the relevant shipping and documentation arrangements.


13. How can I get the price of a SHACMAN X3000 380HP dump truck?

Send us your destination country, required quantity and preferred configuration. Our sales team can check the available vehicle specification and prepare a quotation.


14. What information should I provide when requesting a quotation?

Please provide your country, quantity, engine power, emission requirement, drive position, dump body requirements and destination port. This information helps us prepare a more accurate quotation.
