Shacman X3000 8X4 380hp 23m3 Dump Truck for sale Overview:

The SHACMAN X3000 8×4 dump truck is a heavy-duty tipper truck designed for bulk material transportation in construction, quarrying and suitable mining operations.


The listed configuration features a 380HP WEICHAI diesel engine, a FAST 12-speed manual transmission and a 23m³ dump body. Its 8×4 drive layout uses a four-axle chassis configuration, making it a suitable platform for customers who require a heavy-duty dump truck for demanding transportation tasks.


The truck is listed with 12.00R20 tires, a 400-liter fuel tank and a front hydraulic lifting system. The X3000 cab is equipped with one sleeper and air conditioning.


The final engine model, axle arrangement, dump body dimensions, payload rating and emission standard should be confirmed according to the destination market and the vehicle's technical specification sheet.

Contact us for product details, configuration confirmation and an export quotation.


SHACMAN X3000 8×4 380HP Dump Truck Specifications

Traction type

8×4

Drive System

LHD/(RHD is optional)

Cabin

X3000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WP10.380E22  EuroII

Rated power

380hp

Engine displacement

11.596 liters

Gearbox

Fast 12 speeds (12JSD180T)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

6.5 Ton STR

Rear

16 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20

Fuel tank

400L

Kerb weight (kg)

14200

Total mass (kg)

31000

Wheel base (mm)

1800+3600+1350

Overhang (mm) (front/rear)

1525/1955

Track (mm) (front/rear)

1939/1850

Approach / departure angle(°)

20/33

Dump body

Size

.8600x2300x1500 23cbm

Thickness

Bottom 8, front 6, side 4

Lifting system

Front lifting

Overall dimensions(L*W*H)

10600x2500x3450

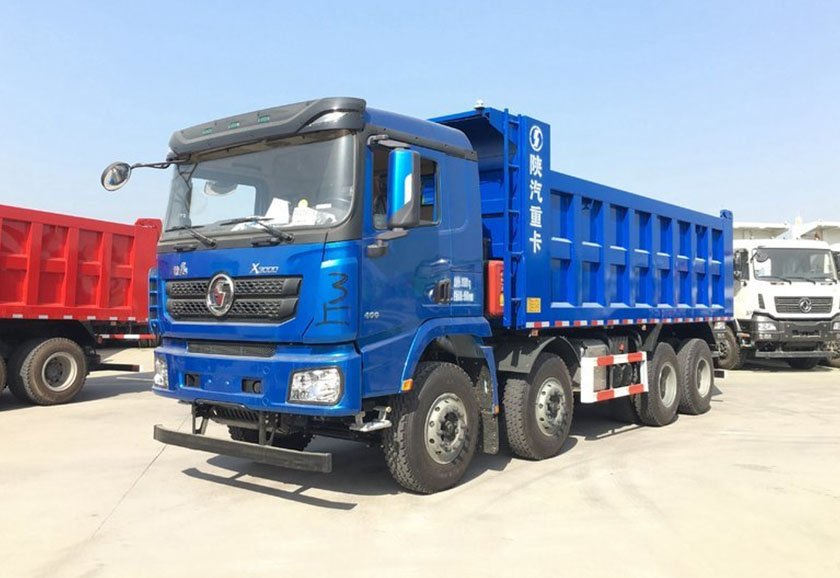

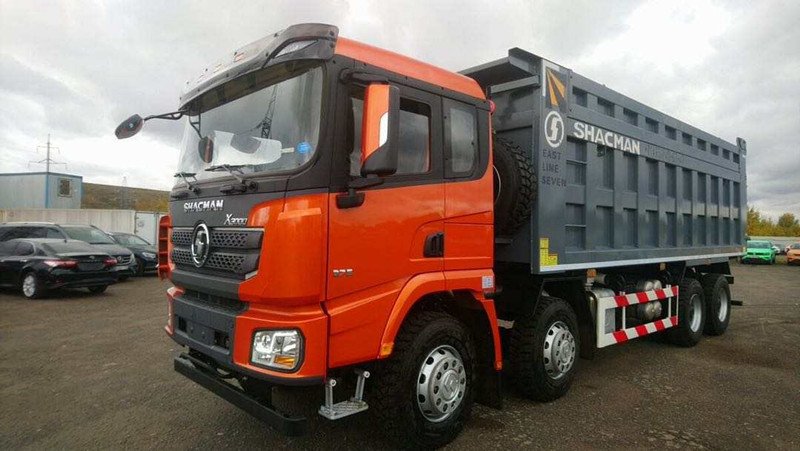

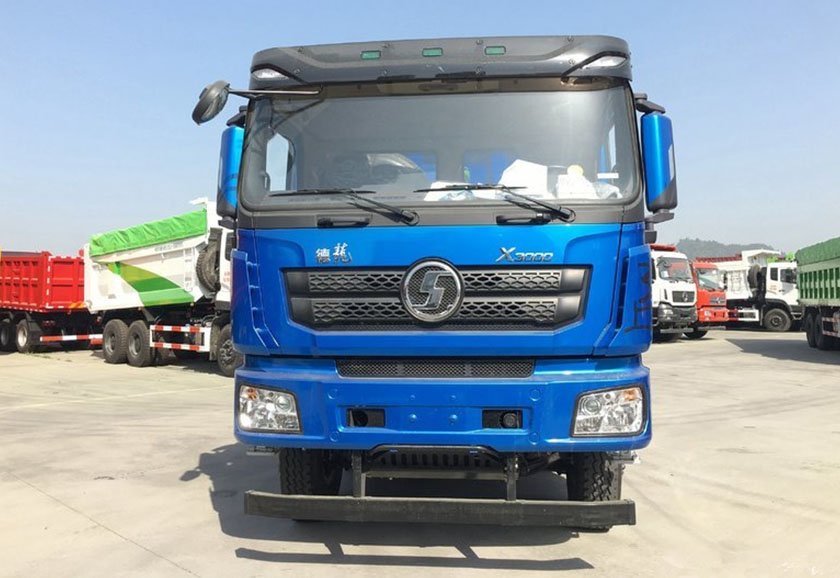

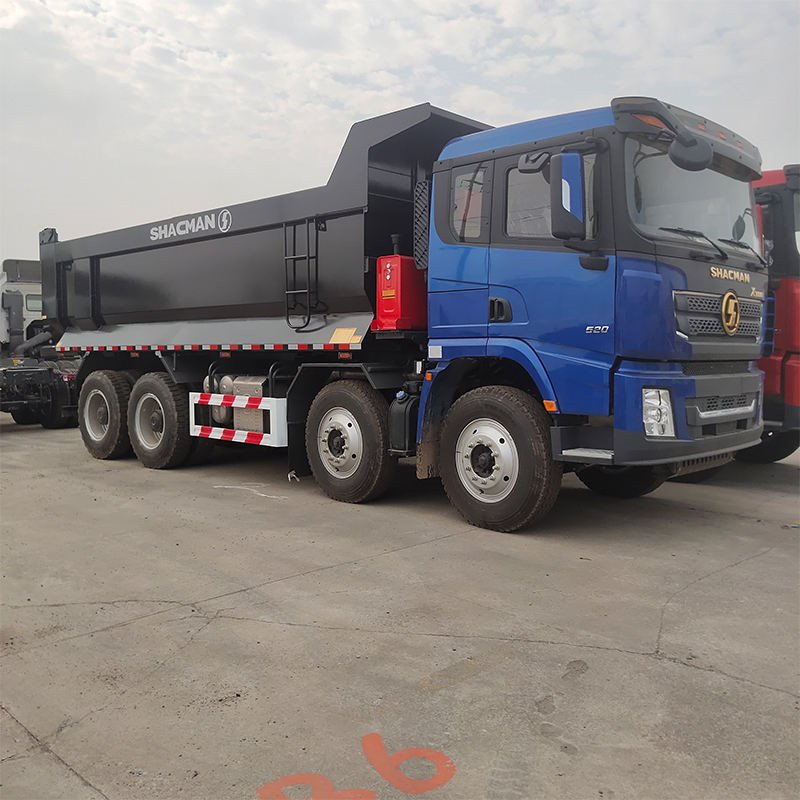

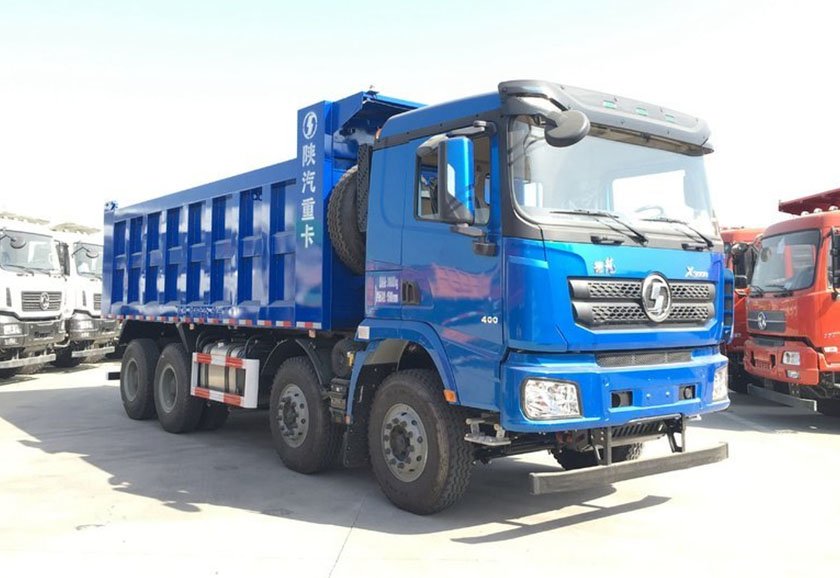

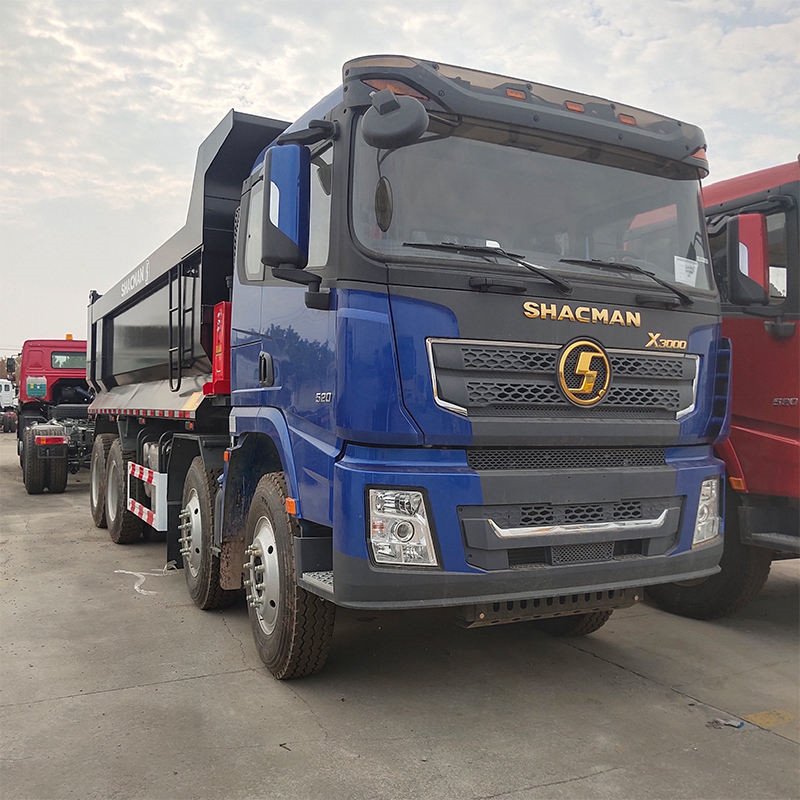

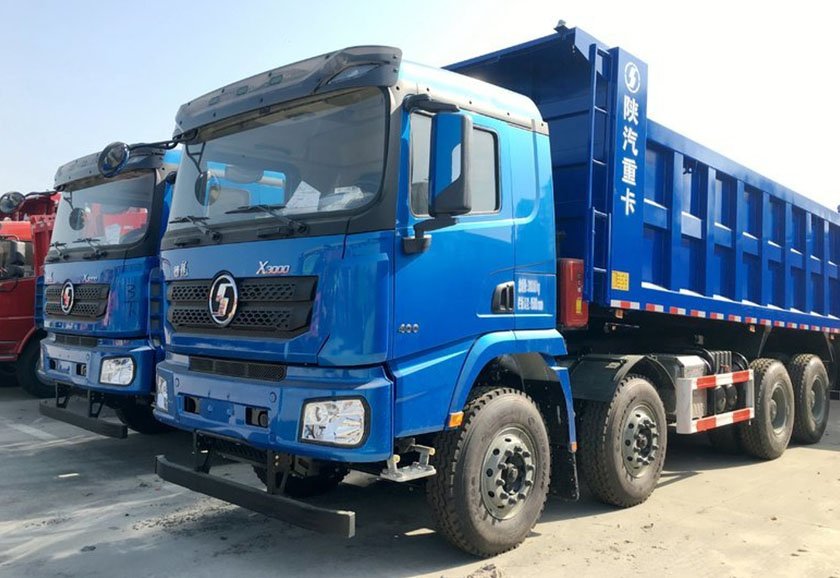

Shacman X3000 8X4 380hp 23m3 Dump Truck for sale

Shacman X3000 8X4 380hp 23m3 Dump Truck for sale

Shacman X3000 8X4 380hp 23m3 Dump Truck for sale


SHACMAN X3000 8×4 Heavy-Duty Chassis

The SHACMAN X3000 8×4 dump truck uses a four-axle chassis configuration for heavy-duty material transportation.


Compared with a 6×4 truck, an 8×4 configuration has an additional axle and a different load distribution arrangement. The actual axle load ratings, suspension setup and permitted vehicle weight depend on the selected chassis specification and local road regulations.


The listed vehicle is equipped with 12.00R20 tires. Buyers should confirm the front axle arrangement, rear axle configuration, axle load ratings, wheelbase and suspension details before placing an order.
